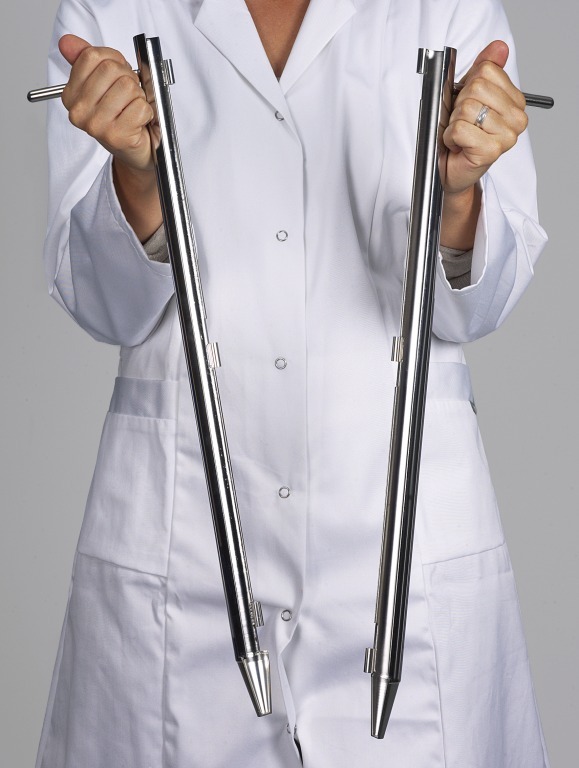

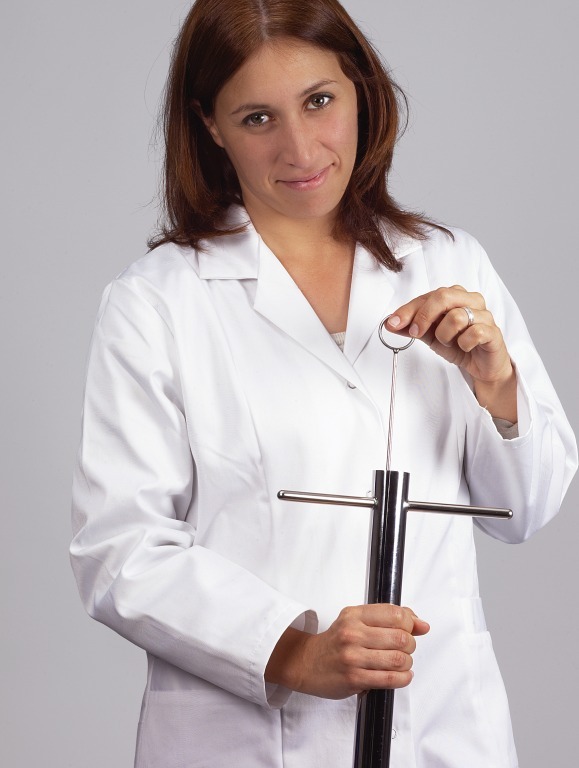

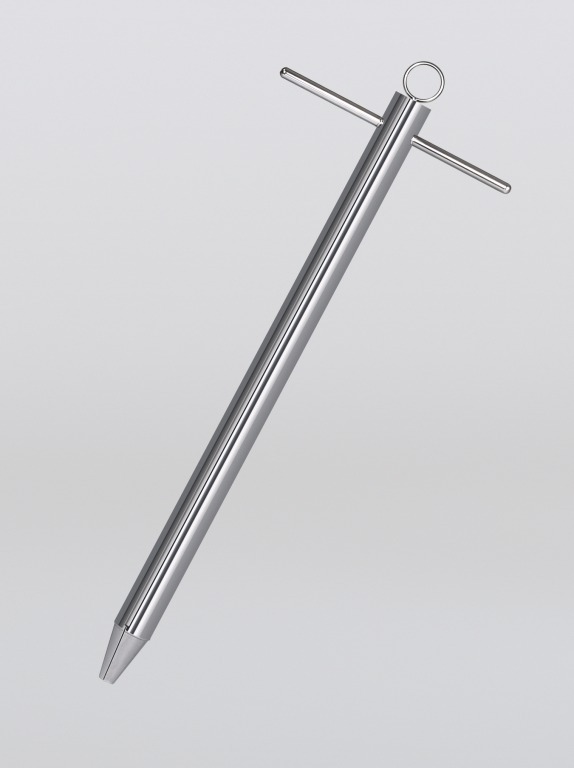

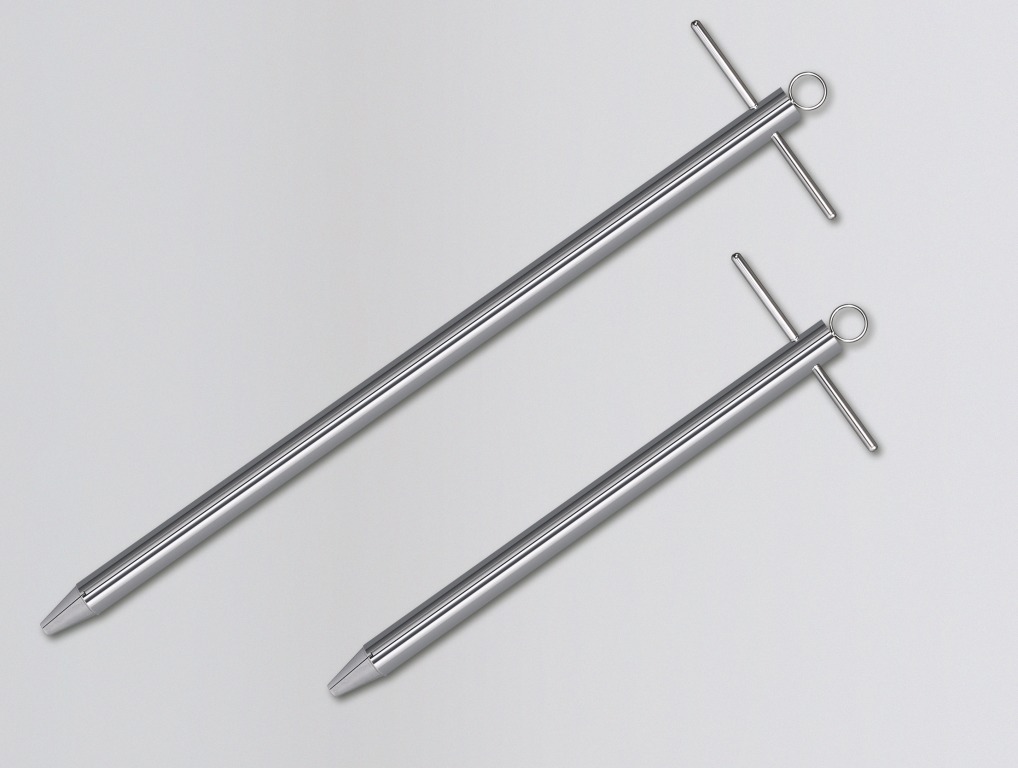

Valve lance

Valve lance open

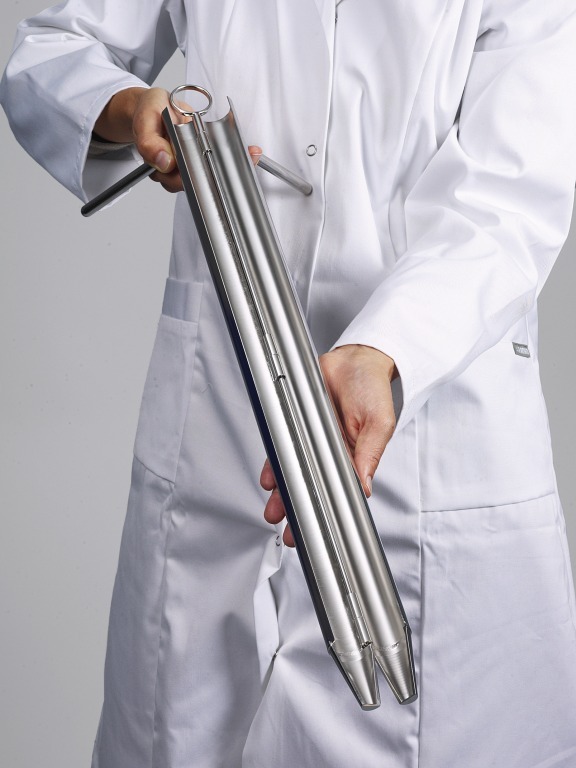

Valve lance closed Valve lance Valve lance, disassembly Can be completly dissambeled
1/5

In our catalog you will find this product on page 64

Look up in our flip catalog

Configure your version

Enter item number: {config.singleVariant.number}

Where to buy
Overview of all versions Close overview

At a glance

  • Stainless steel AISI 316L (1.4404)
  • 32 mm (1.26 in.) Ø
  • Optimized opening mechanism (can be completely disassembled) for easy cleaning

Please note

  • Autoclavable up to max. 121°C (249.8°F) 20 min.
  • Produced according to DIN norm
  • Material V4A
  • Suitable for use with foodstuffs

Sampler for all-layer samples of viscous, paste-like, semi-liquid substances, according to DIN 51750 pt. 3 and DIN EN ISO 15528. Different layers remain intact particularly with paste-like substances.

Use

For viscous substances:

  1. The valve lance is inserted all the way to the bottom, whilst being closed.
  2. It is opened, closed and pulled out again.

For paste-like substances:

  1. The valve lance is inserted all the way to the bottom, whilst being open.
  2. It is closed and pulled out again.
