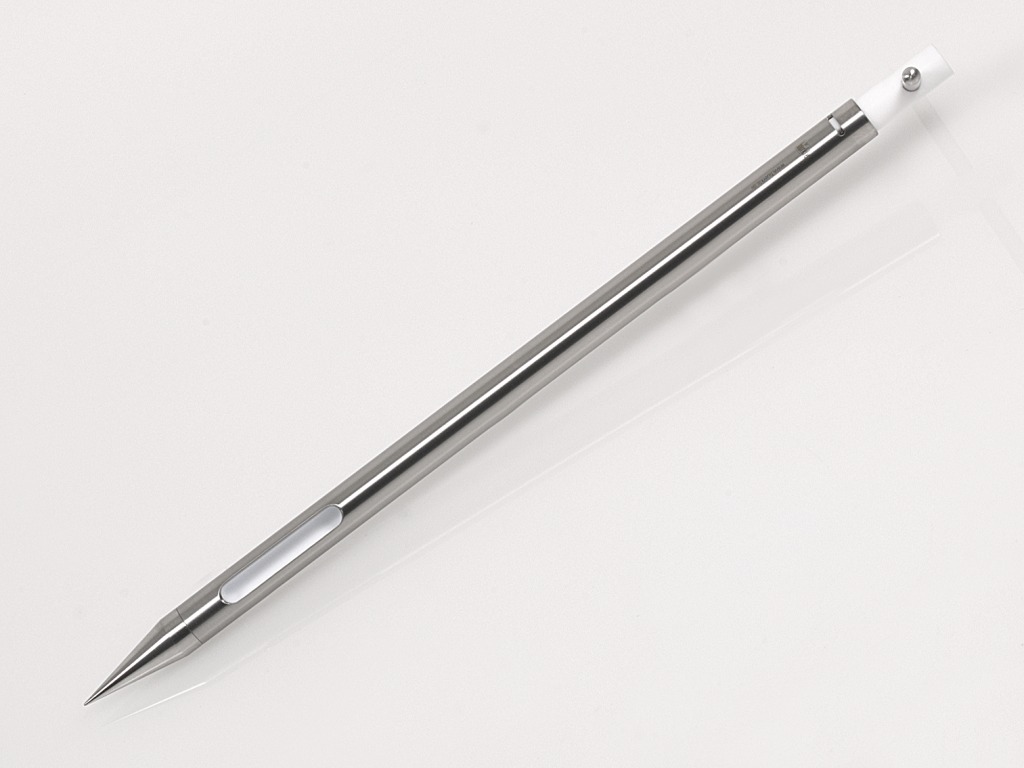

Uno sampler
In our catalog you will find this product on page 41
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Outer tube stainless steel AISI 316L (1.4404), sample chambers made of PTFE
- With color coding system
- 25 mm (0.98 in.) Ø
- Smallest possible gap between the inner and the outer tube

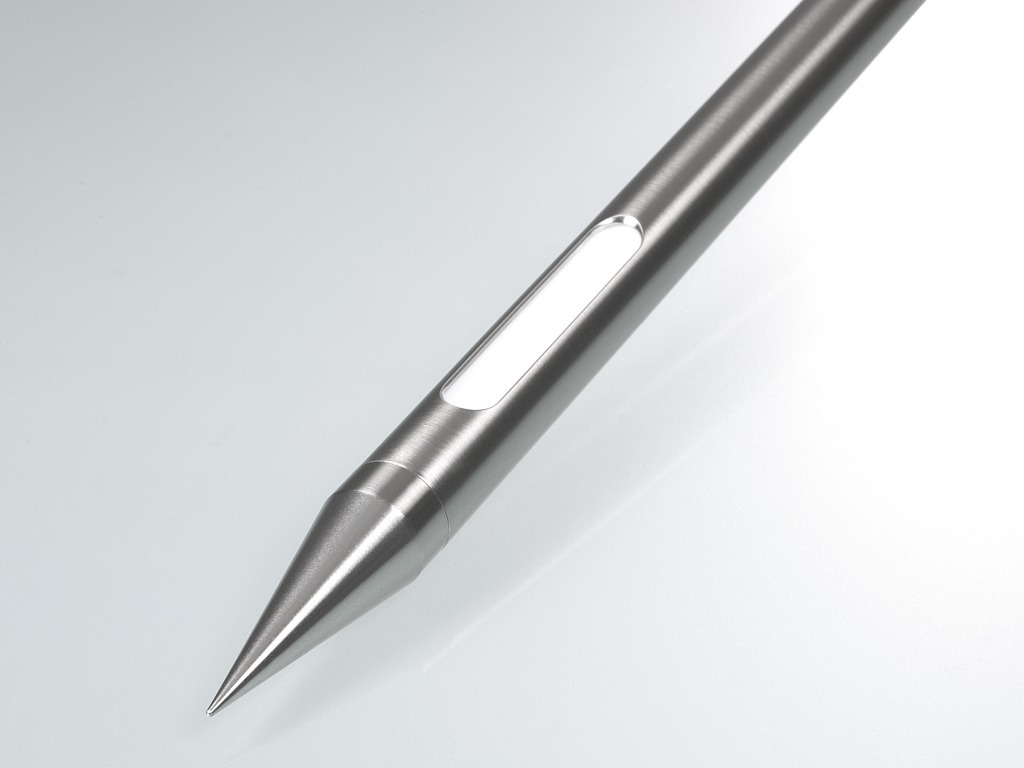

- Easy cleaning, removable tip
- Color coding (Multi and Uno sampler)
- Ultra-pure materials
- Excellent processing, robust model
Please note

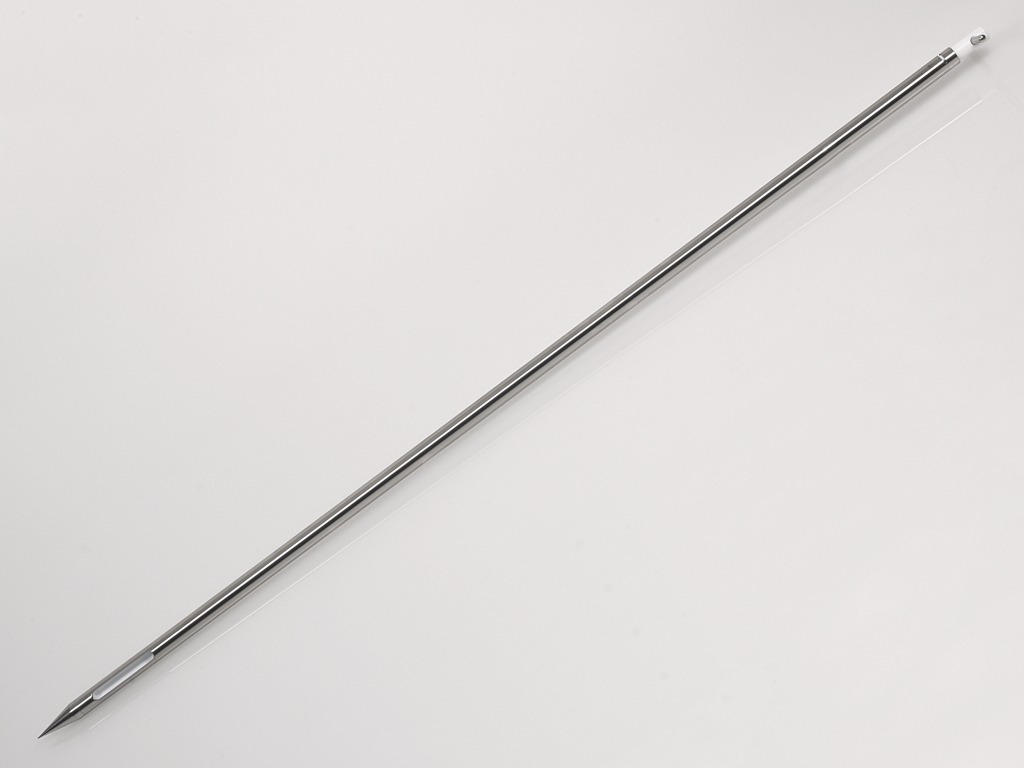

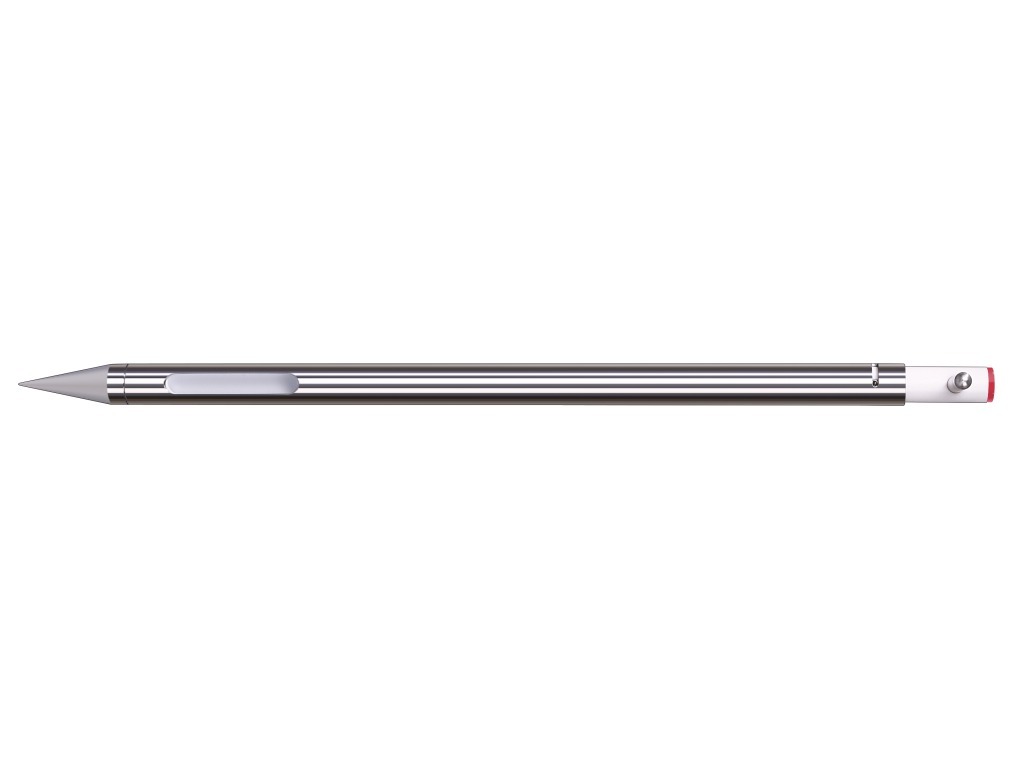

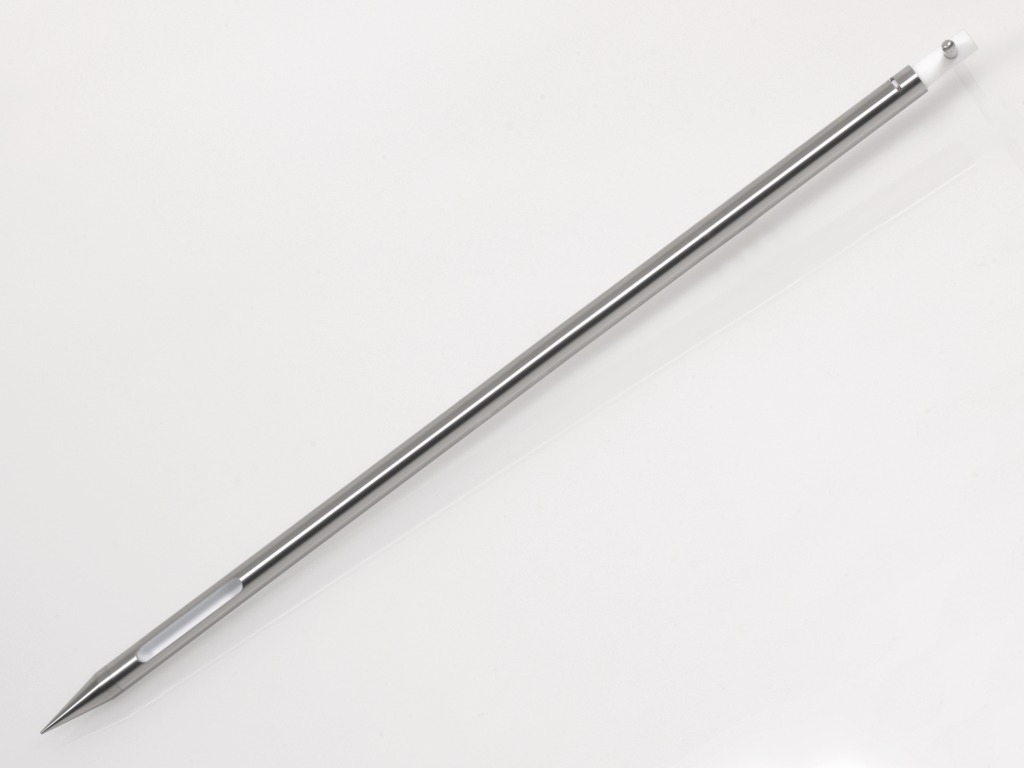

Uno sampler made of stainless steel AISI 316L (1.4404)/PTFE with a closed sample chamber for point sampling from a predetermined sampling depth.
Bürkle zone samplers are used for taking samples of bulk goods of any kind.
The big advantage of zone samplers is that all-layer samples can be collected from all layers of the container.
Various bulk goods can be collected with the lances, from the finest powder to large grains such as corn or nuts.

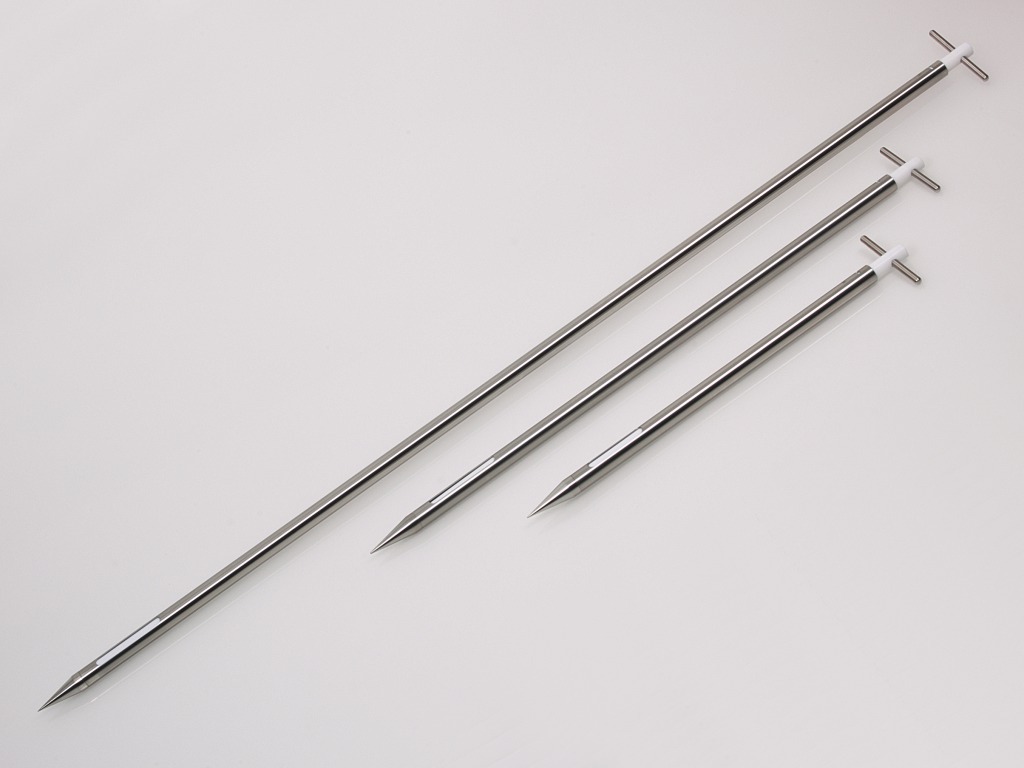

The zone samplers are available in different lengths. 55 cm (21.65 in.) (only Multi, Uno and All-layer sampler) especially suitable for sacks, 85 cm (33.46 in.) long (especially for barrels, tubs, mixed containers) and 150 cm (59.06 in.) as well as 250 cm (98.43 in.) (only Jumbo sampler) for big bags, silos, tanks.
Safe and reliable sampling is made even easier with useful special accessories such as sealing sleeves, Quali-Paper, cleaning brushes, emptying devices and close-it control seals.
The zone samplers are available in different models for different sampling tasks.
Use

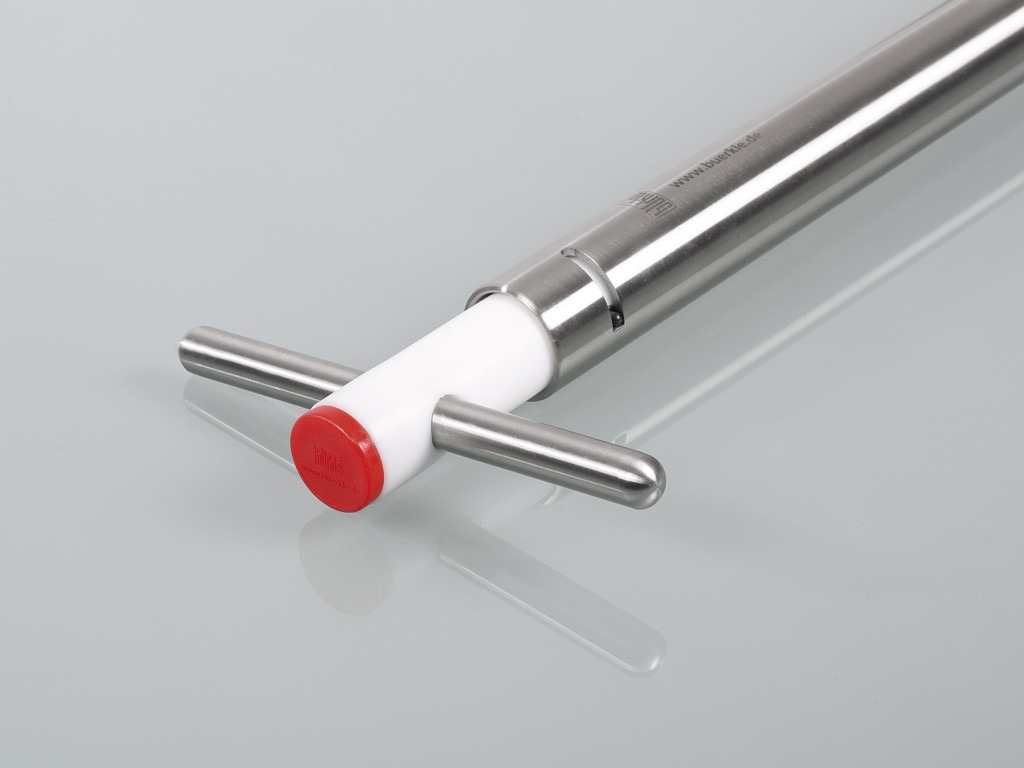

- Turn the handle, close the chamber.

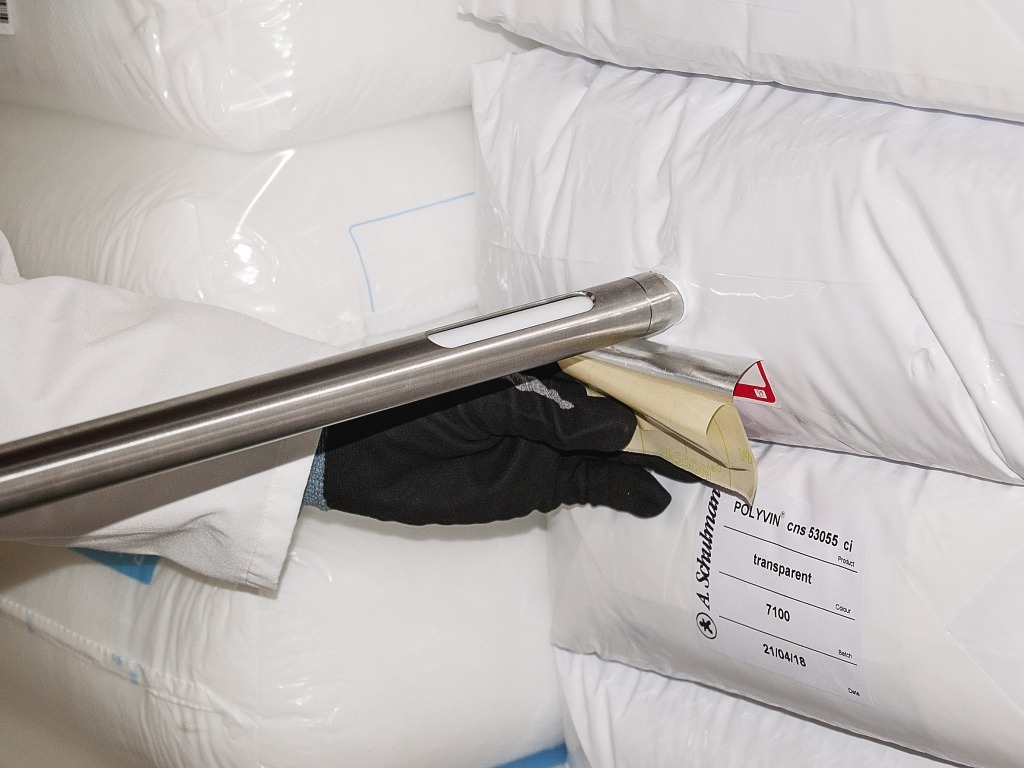

- Insert the sampler to the required depth.

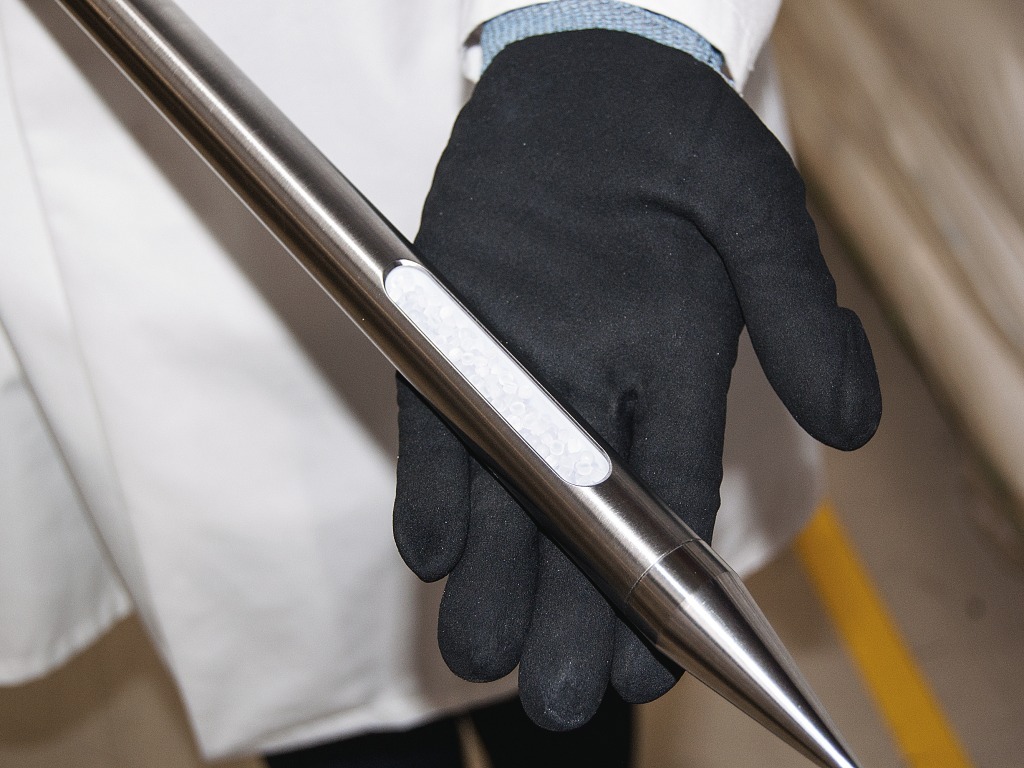

- Open the chamber, sample flows into the chamber.
- Close the chamber.
- Pull out the sampler.
- Close the insertion opening with the close-it control seal.
- Empty onto Quali-Paper.
