Universal thread adapter
In our catalog you will find this product on page 25
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Material stainless steel AISI 304 and ePTFE seal
- Min. height of the container opening 6 mm (0.24 in.), max. 55 mm (2.17 in.)

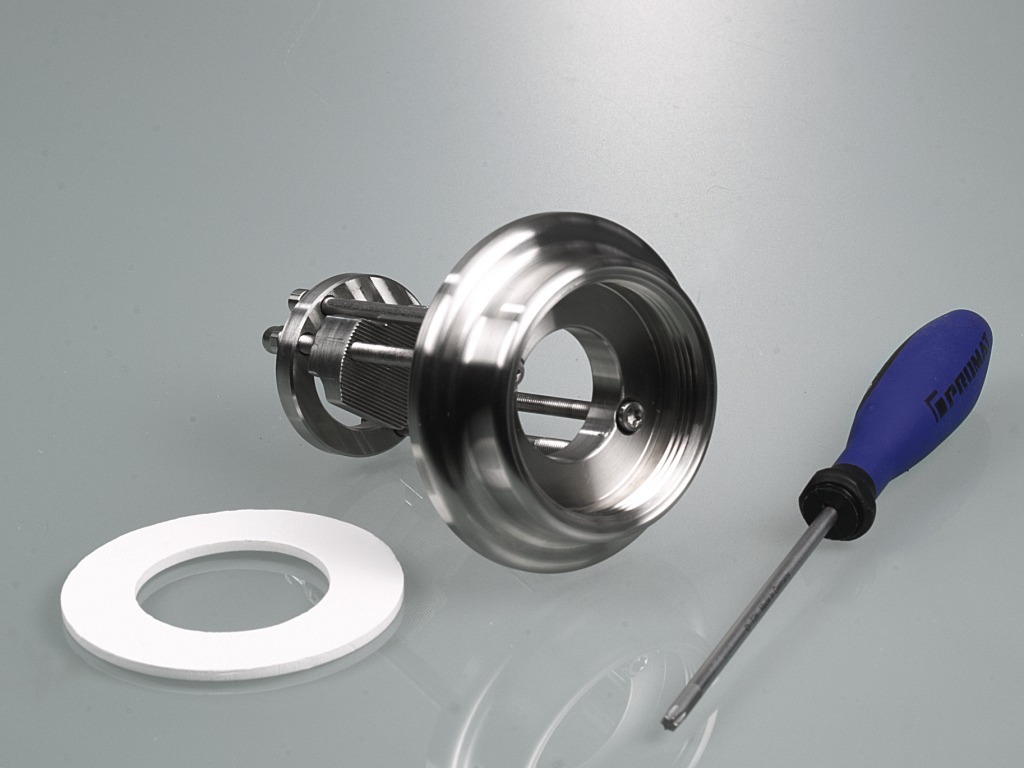

- Scope of delivery: Universal adapter incl. ePTFE seal, mounting key
Please note

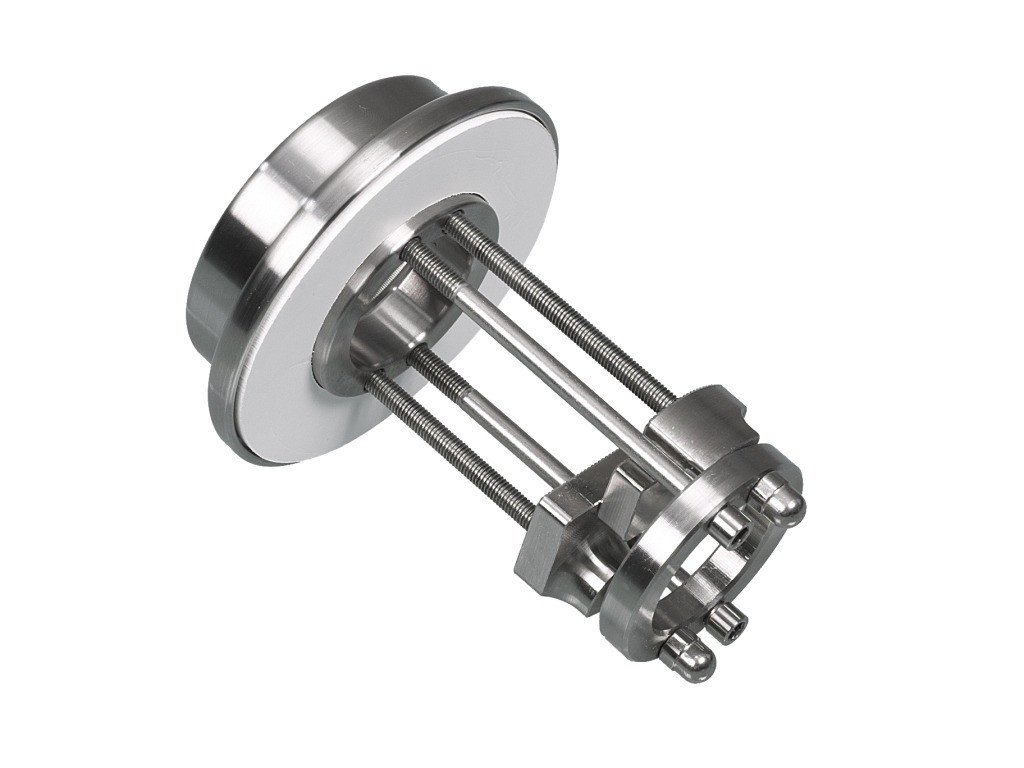

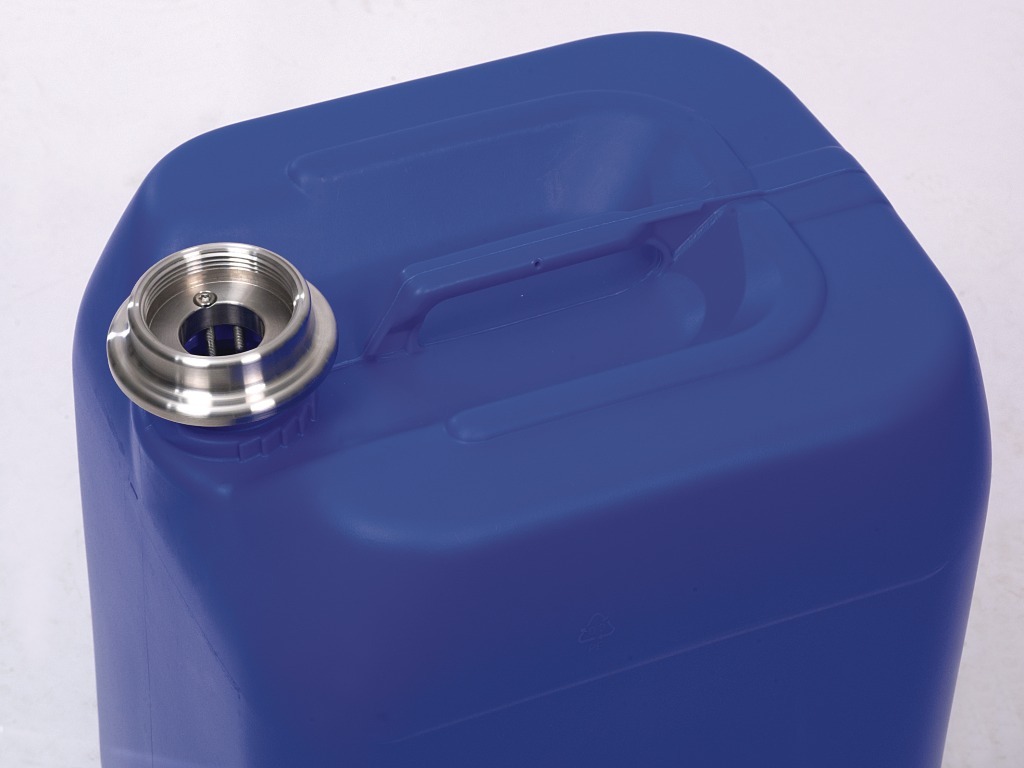

Universal thread adapter for nearly all drums and other containers with opening of 48–75 mm (1.89–2.95 in.) in diameter, regardless of the respective thread. The thread adapter can be mounted quickly and easily with clamping screws and can be used for different container openings.

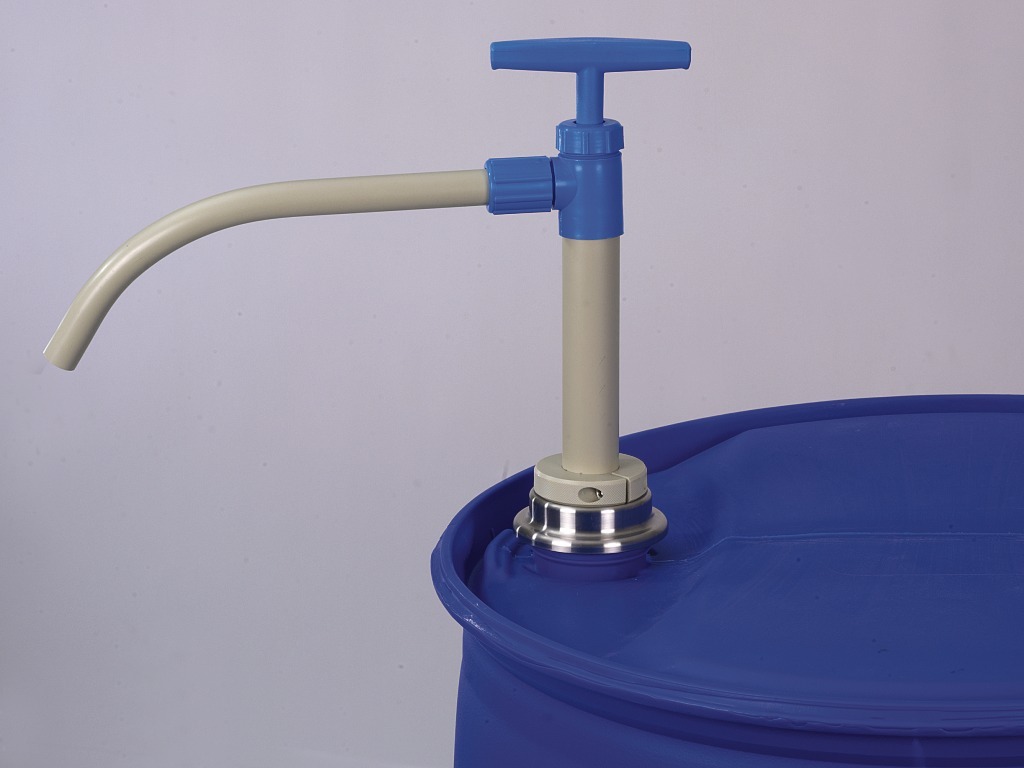

With G2" connector thread for Bürkle drum screw connections and pumps with immersion tube diameter up to 32 mm (1.26 in.).
The container connectors make decanting even easier and safer with their more secure connection to barrels. The connectors secure the pump in the barrel, enable a vertical position change and allow the required air exchange.
Application

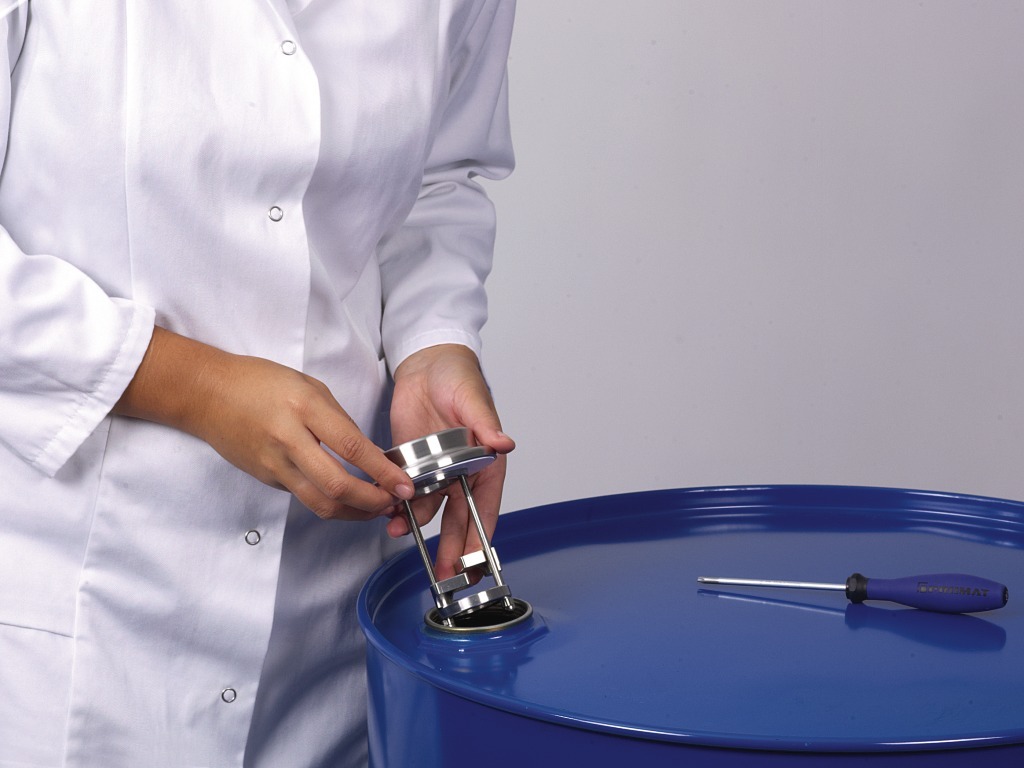

- Screw the clamping jaws down and turn them inward

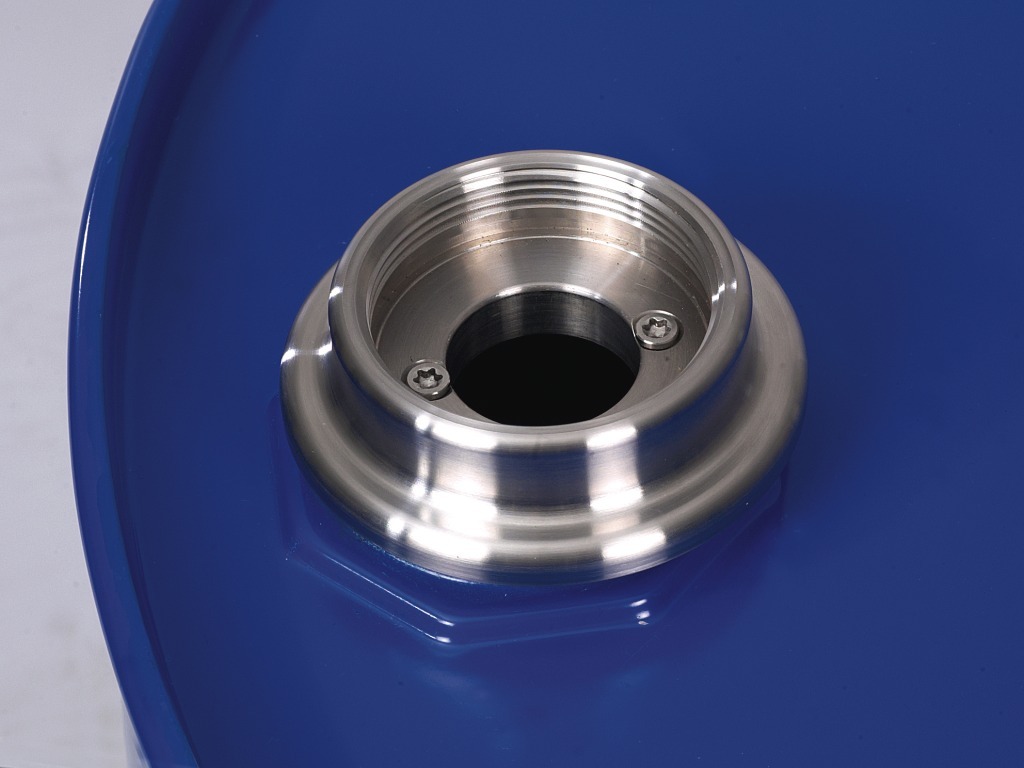

- Place the thread adapter on the drum opening
- Fix the clamping jaws in place with the mounting key

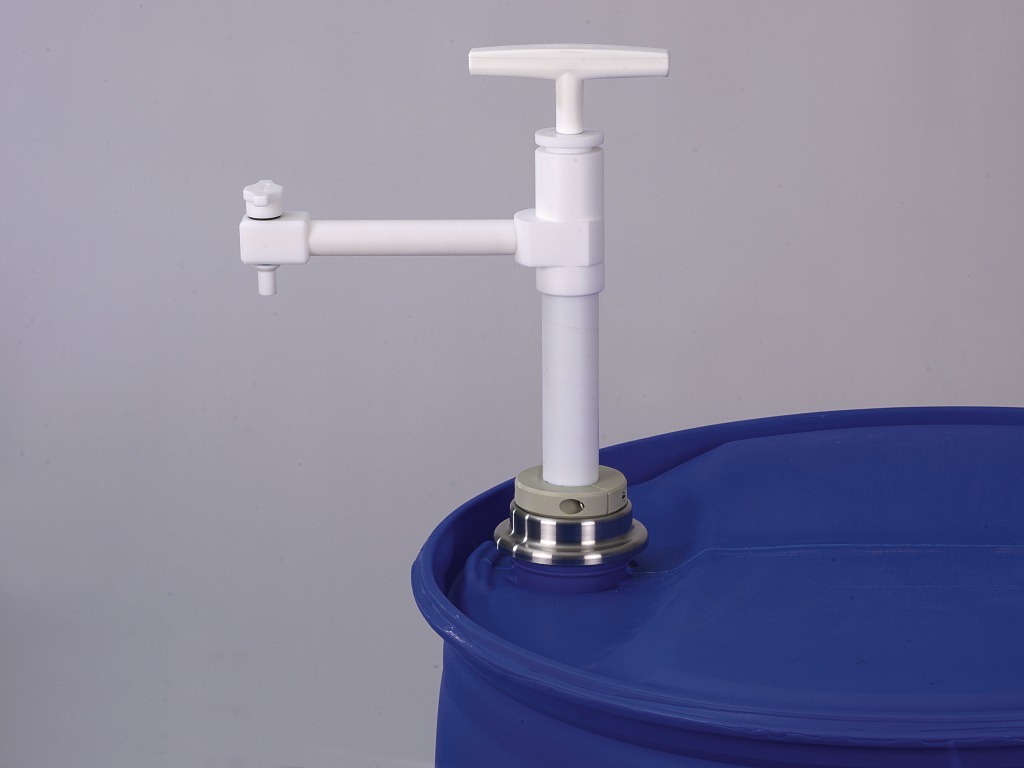

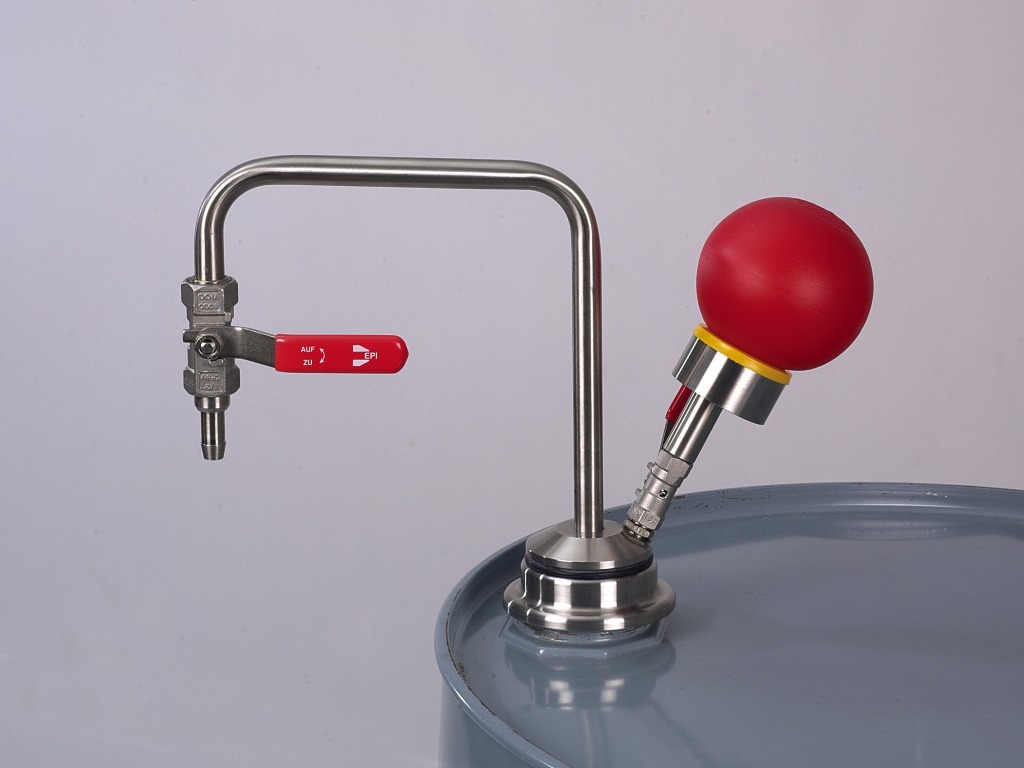

- Mount the desired pump or drum screw connection
