UniSampler "Ex"

UniSampler "Ex"
UniSampler UniSampler UniSampler UniSampler UniSampler UniSampler
1/7

In our catalog you will find this product on page 80

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

Where to buy

At a glance

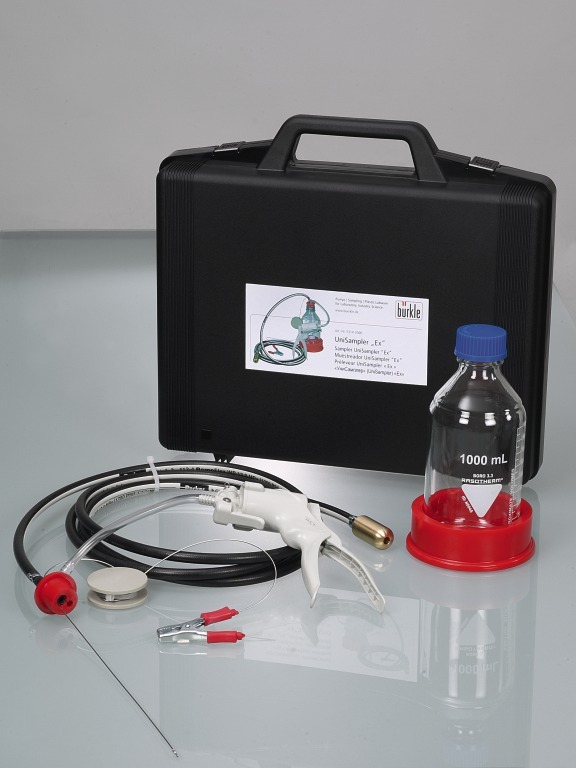

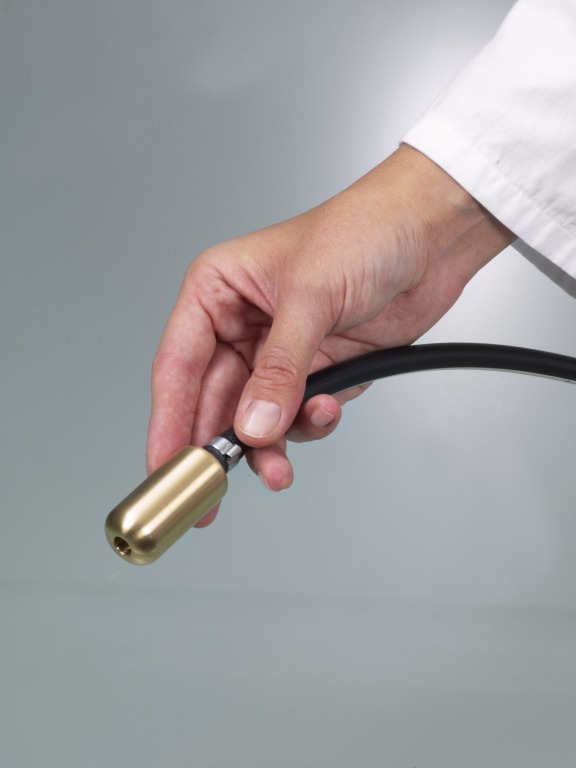

  • Complete in a handy transport case incl. 4 m (13.12 ft.) hose (NBR), glass bottle 1000 ml (33.81 oz.), bottle adapter, bottle stand, vacuum pump, grounding cable and hose-weight made of brass
  • PTB approval D-333-009 618/00

Please note

The UniSampler ”Ex” was developed in co-operation with the quality association Tankschutz e.V. (non-profit association for tank protection).

  • Observe explosion protection guidelines

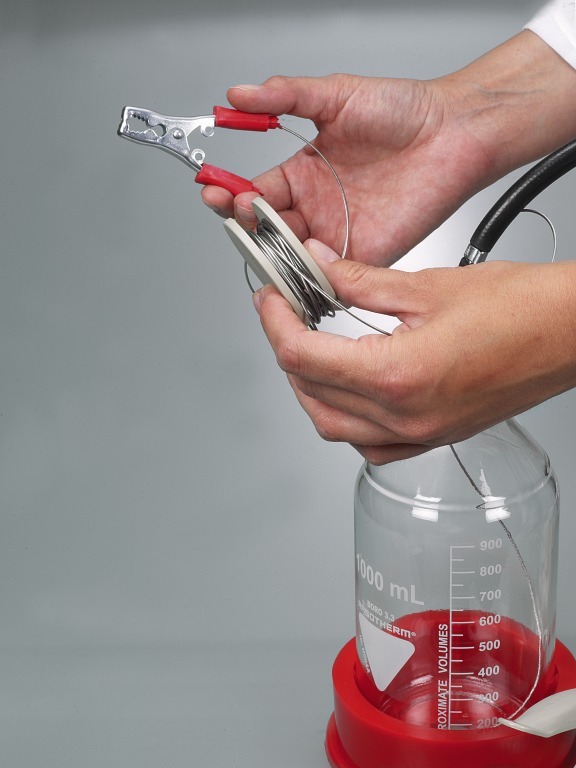

Sampler especially developed for sampling flammable liquids of Hazard Category AI (VbF, e.g. fuel). Glass bottle and hose are connected in such a way that they conduct electricity and are grounded via a grounding cable.

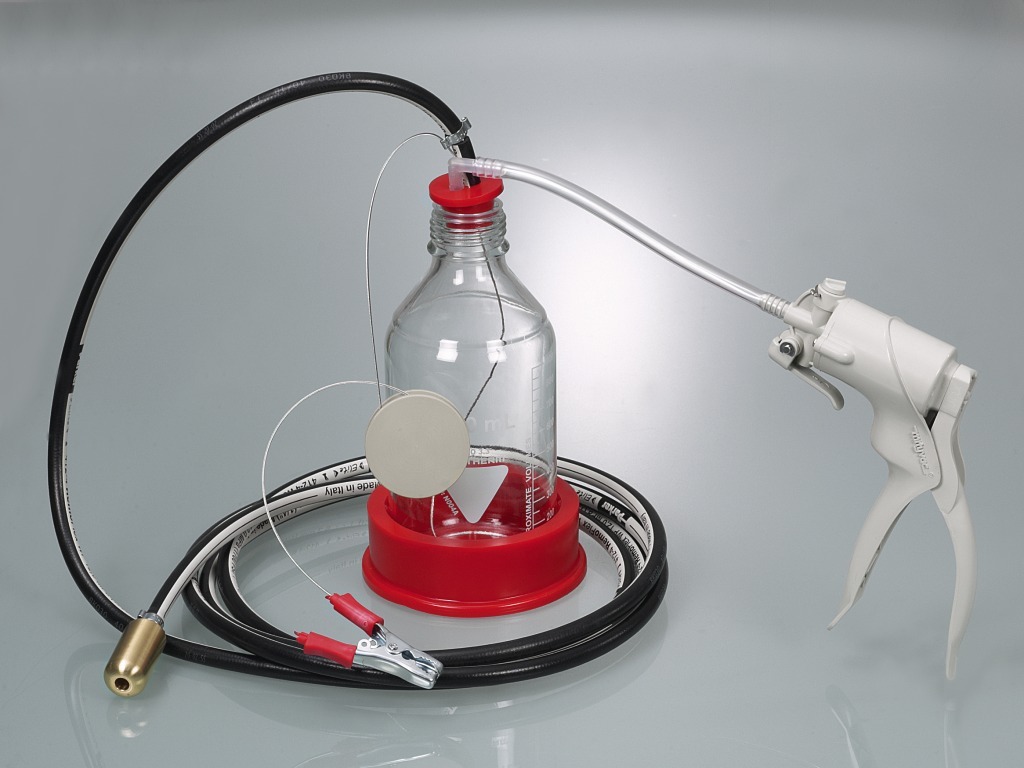

Sampler for liquid samples from precisely pre-determined depth, with hand-operated vacuum pump. Sampling using vacuum pumps has the advantage that the liquid only comes into contact with the suction hose and the original sample bottle.

Use

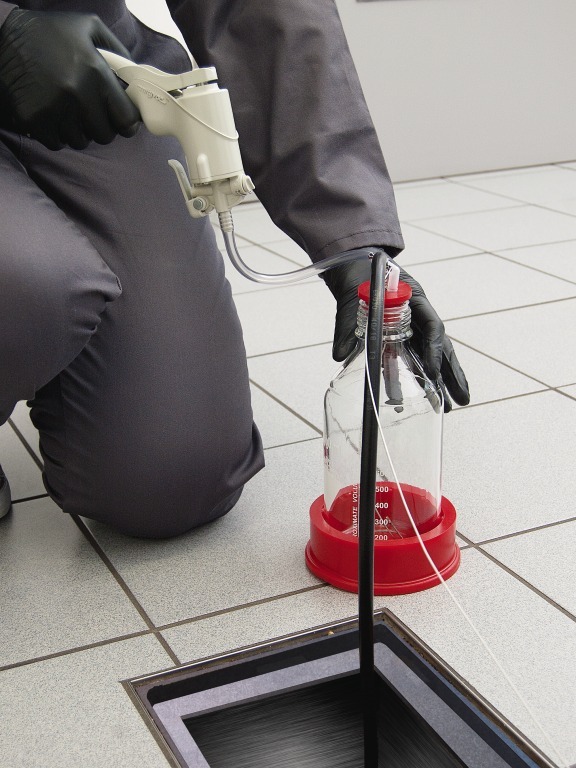

  1. Ground the device.
  2. Lower the suction hose to the required depth.

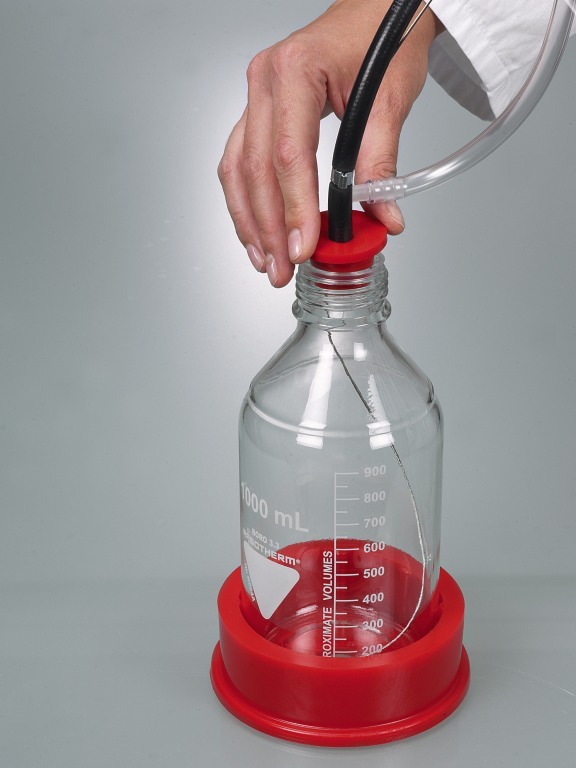

  3. Attach the adapter to the sampling bottle.

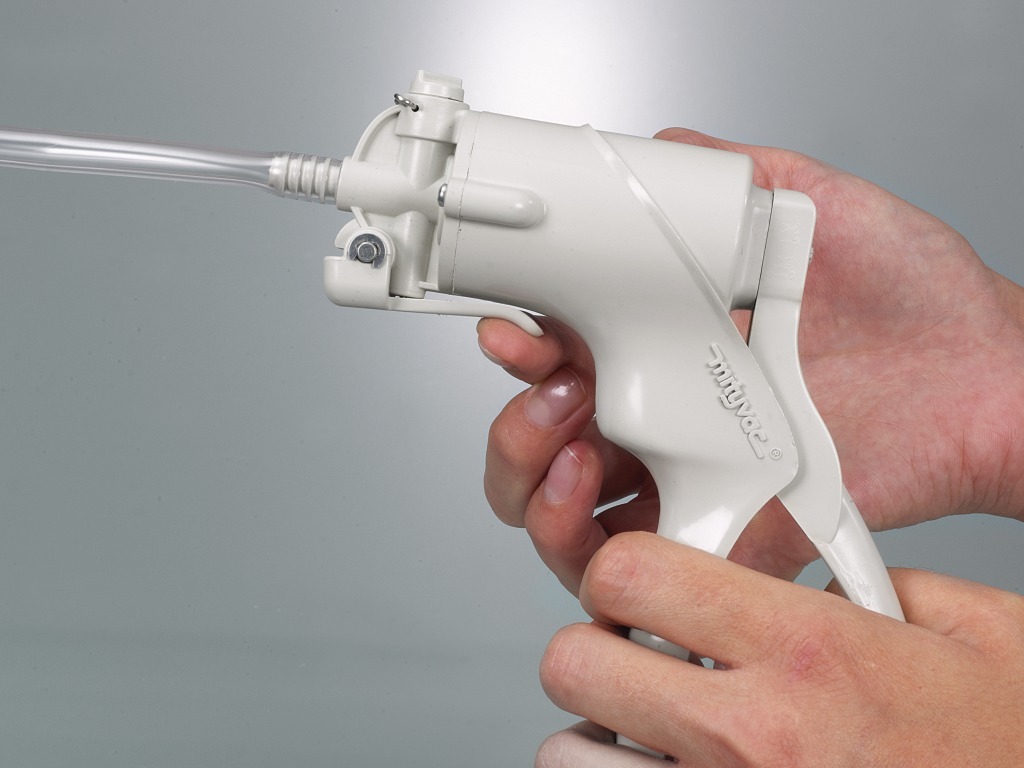

  4. Create a vacuum using the handpump and collect the sample.
  5. Remove the filled sample bottle, close and label it.

EX

UniSampler with telescopic lance

UniSampler with suction lance

The collection lance consists of an inner tube and an outer tube....

UniSampler with hose

UniSampler with hose

UniSampler with PVC hose and hose weight made of stainless steel. For...
