Stainless steel barrel pump - discharge hose/stopcock
In our catalog you will find this product on page 19
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Immersion tube Ø 32 mm (1.26 in.)
- Removable hose, 1.2 m (3.94 ft.) in length
- Ball valve made of stainless steel NW 8 mm (0.31 in.)
- Discharge nozzle Ø 12.8 mm (0.50 in.)
Please note
Not suitable for acetone!
When withdrawing flammable liquids, the barrel and pump have to be grounded! Use Anti-static set!

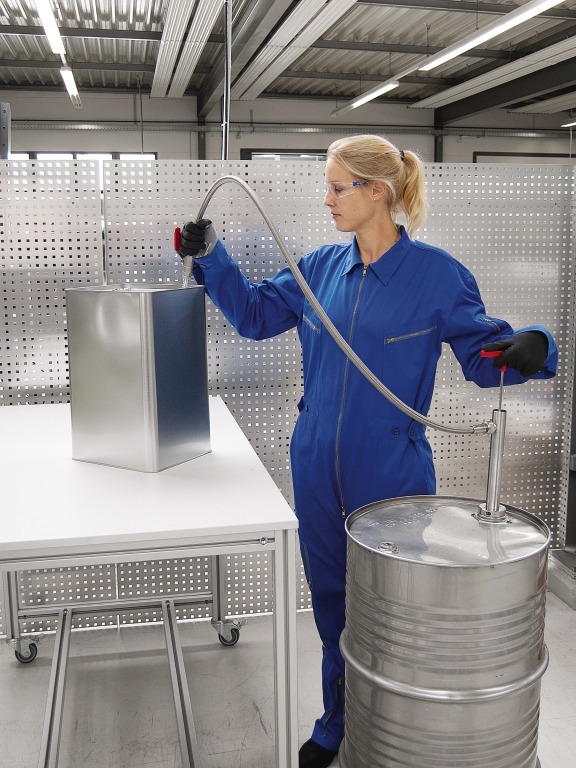

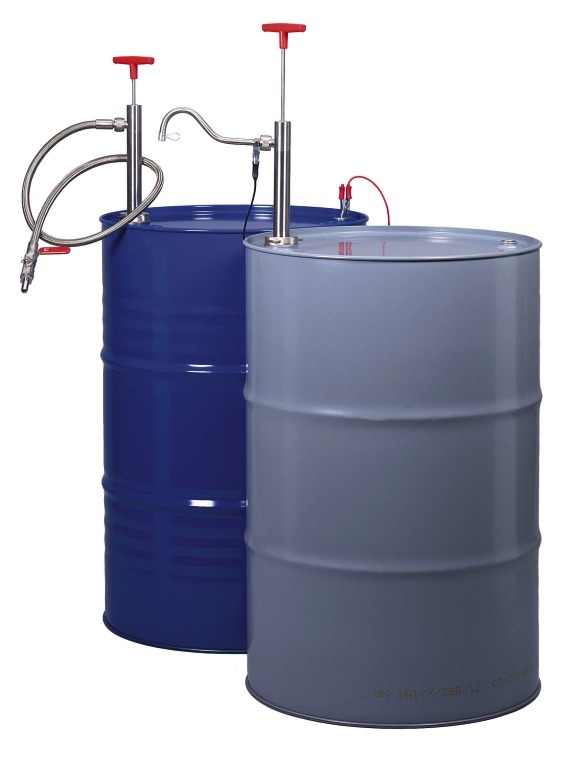

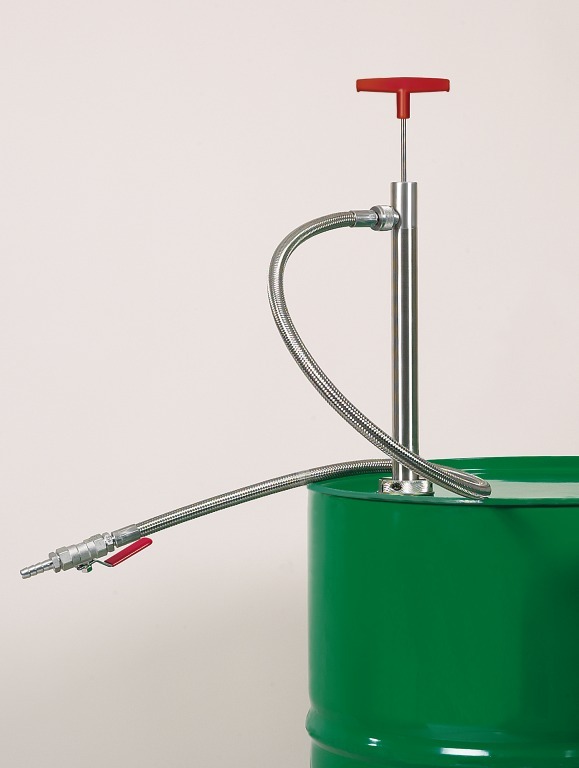

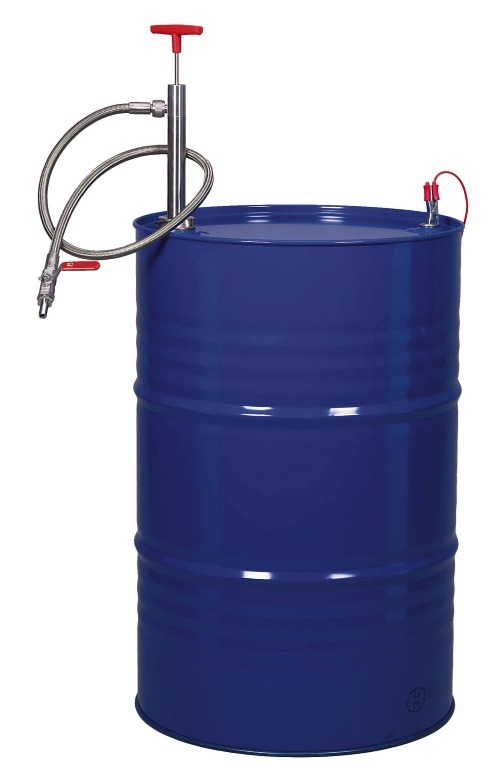

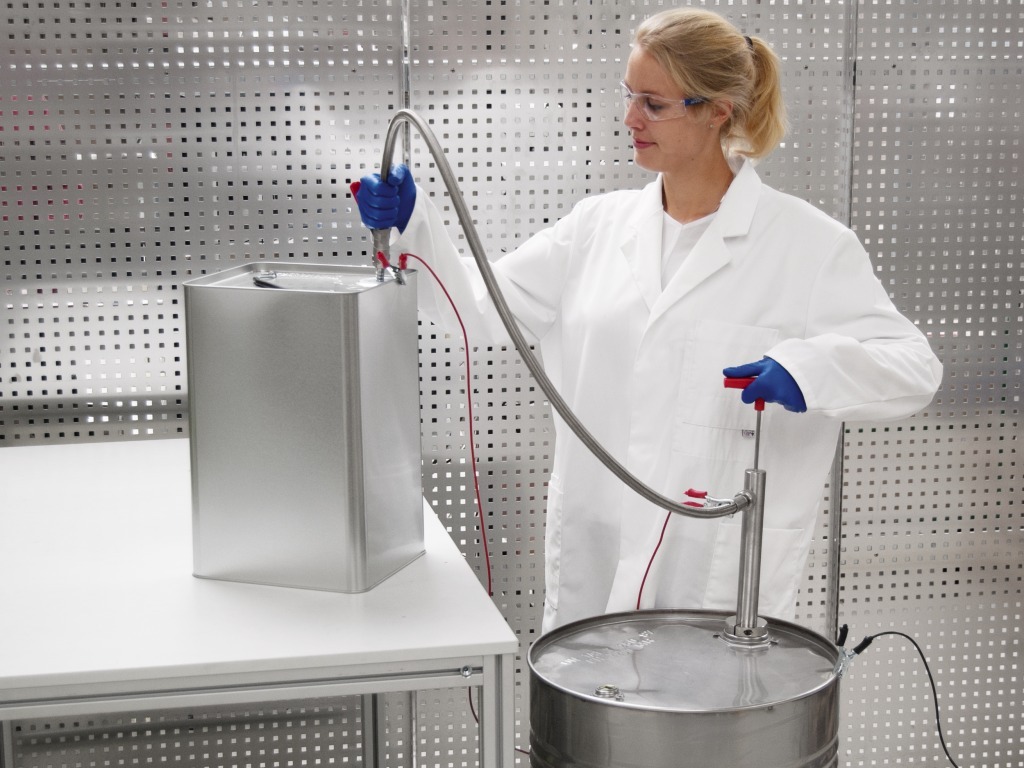

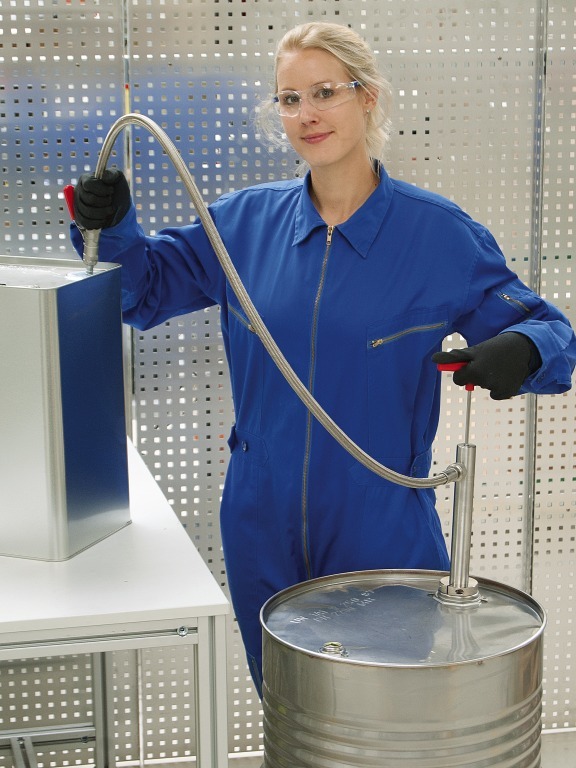

Barrel pump stainless steel with discharge hose and stopcock made of stainless steel and PTFE, can conduct electricity.
The Bürkle barrel pump made of stainless steel AISI 304 (1.4301) is suitable for filling combustible and easily flammable liquids. The barrel pump can conduct electricity and therefore fulfils the requirements for handling flammable liquids in combination with the accessory anti-static set.
The PTFE gaskets ensure long-term and maintenance-free use. Pumping capacity approx. 9–22 l/min (2.38–5.81 gpm), dependent on pump length.
The wide range of accessories makes it possible to adapt the pump to very different requirements.
