LiquiSampler
In our catalog you will find this product on page 69
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance

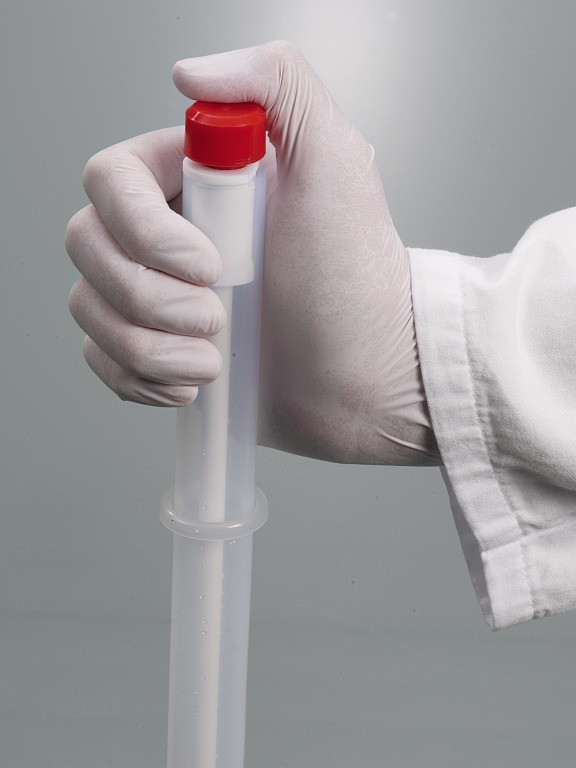

- Practical one-handed use at the push of a button

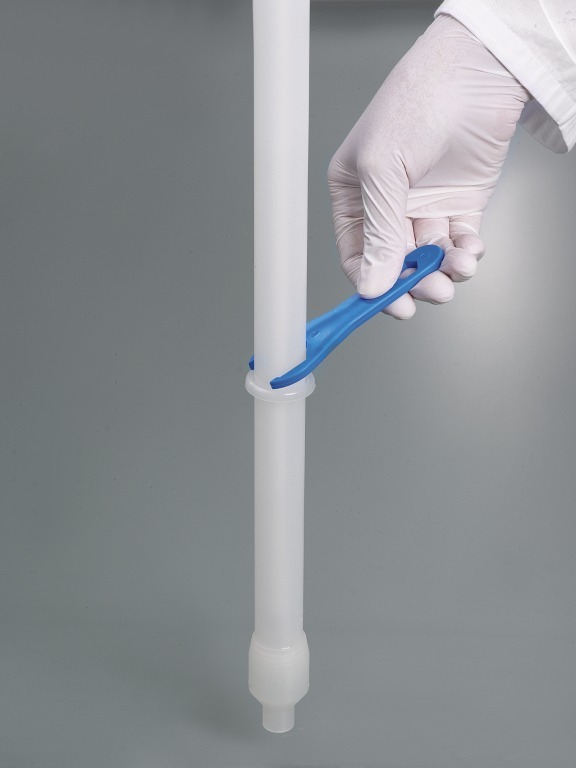

- With scraping ring for marking of depth and cleaning
- Transparent
- Available in PTFE/FEP or PP transparent
- Point sampling, all-layer sampling and bottom sampling possible
Please note
LiquiSampler for liquids, according to DIN EN ISO 15528. Made of ultra pure and chemically inert PTFE/FEP or PP for contamination-free sampling.

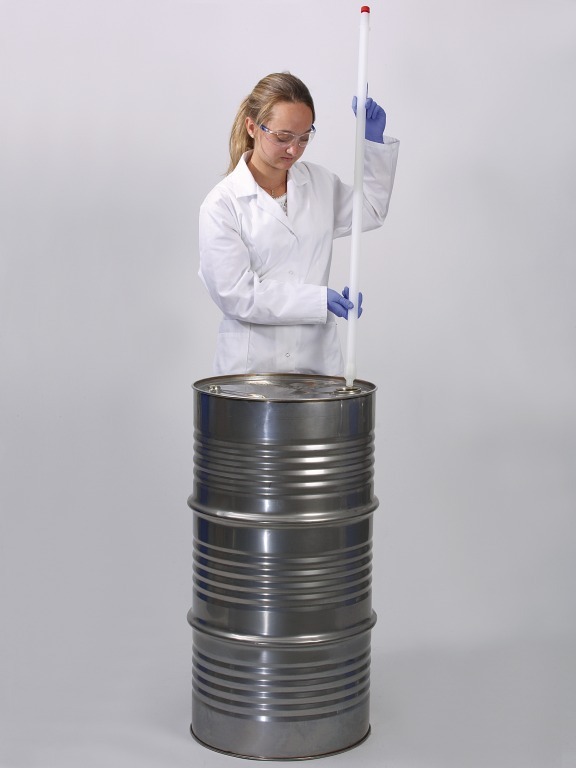

Sampling from open and closed containers, barrels, tanks, silos, water courses. Suitable for all commercially available barrels and containers with opening of at least 32 mm (1.26 in.) in diameter.
Easy cleaning - all surfaces are free of pores and crevices, preventing accumulation of dirt. Only round screw threads proven in foodstuffs hygiene are used. Disassembly and cleaning are extremely simple.
Use

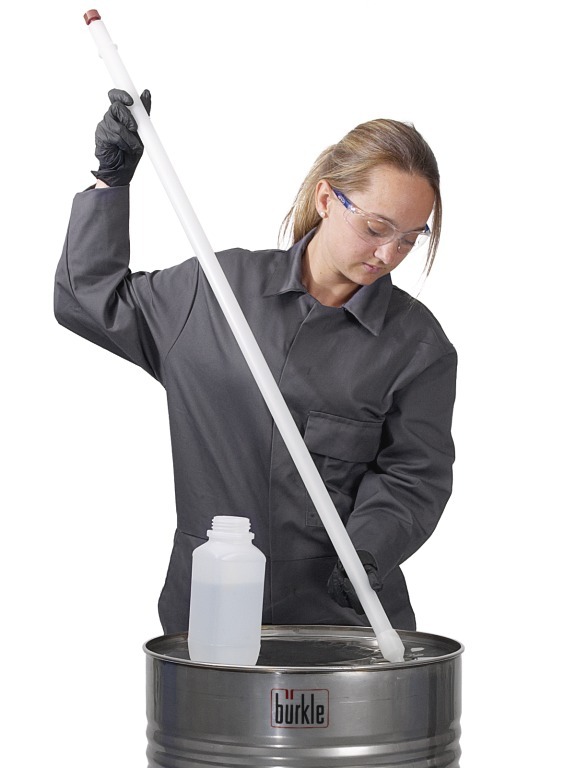

All-layer sample
- Slowly insert the LiquiSampler into the liquid with the button pressed.
- Release the push-button, the valve closes.

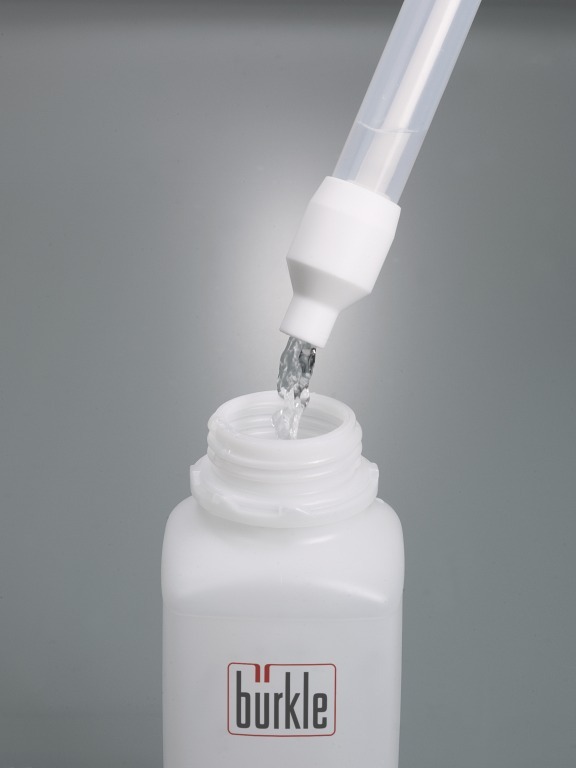

- Withdraw the lance and take out the sample.
Point sampling/bottom sample
- Insert the LiquiSampler to the targeted point/to the ground with closed valve.
- Press the button - the liquid flows in.
- Release the push-button, the valve closes.
- Pull out the LiquiSampler, take out the sample.
