Flow indicators CheMobil PMP
In our catalog you will find this product on page 169
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Operating temperature CheMobil PMP max. +60 °C (+140 °F)
- For hoses with inner diameter of 6–11 mm (0.24–0.43 in.)
- Pressure resistant up to 2 bar (29.01 psi)
- Length with grommets 88 mm (3.46 in.), height 40 mm (1.57 in.), width 16 mm (0.63 in.)

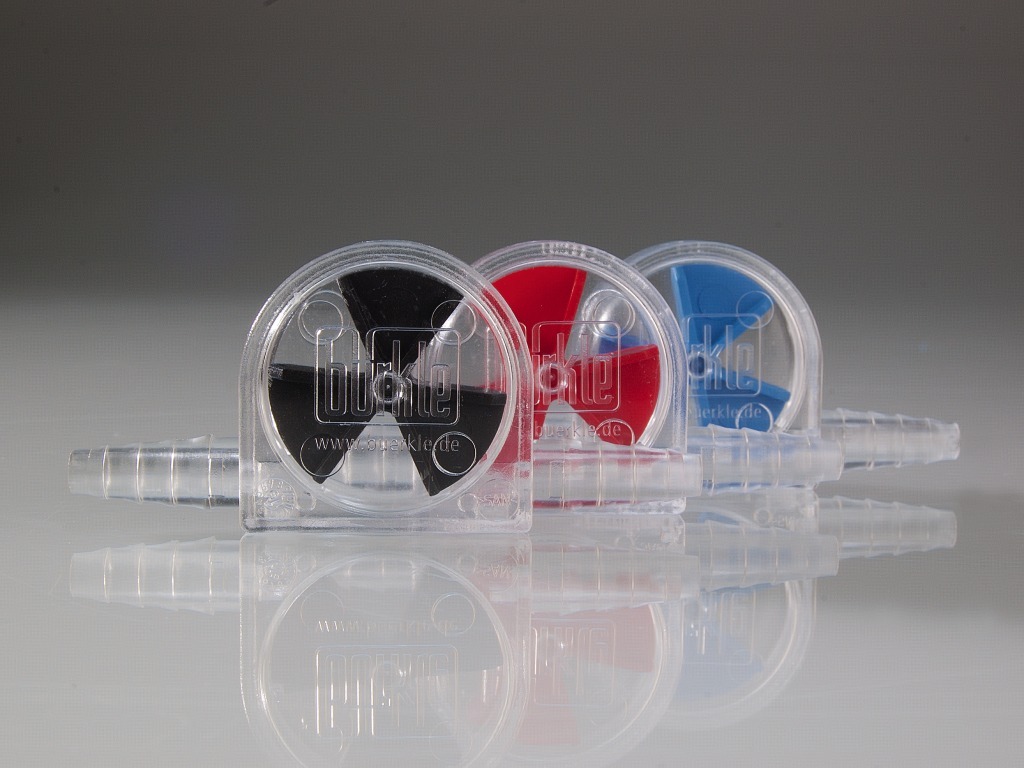

- Color coding – blue, red and black
Please note
CheMobil made of PMP/TPX can be used for many substances due to its good chemical resistance. Not suitable for strong acids, alkalis and solvents. CheMobil can be steam sterilized.

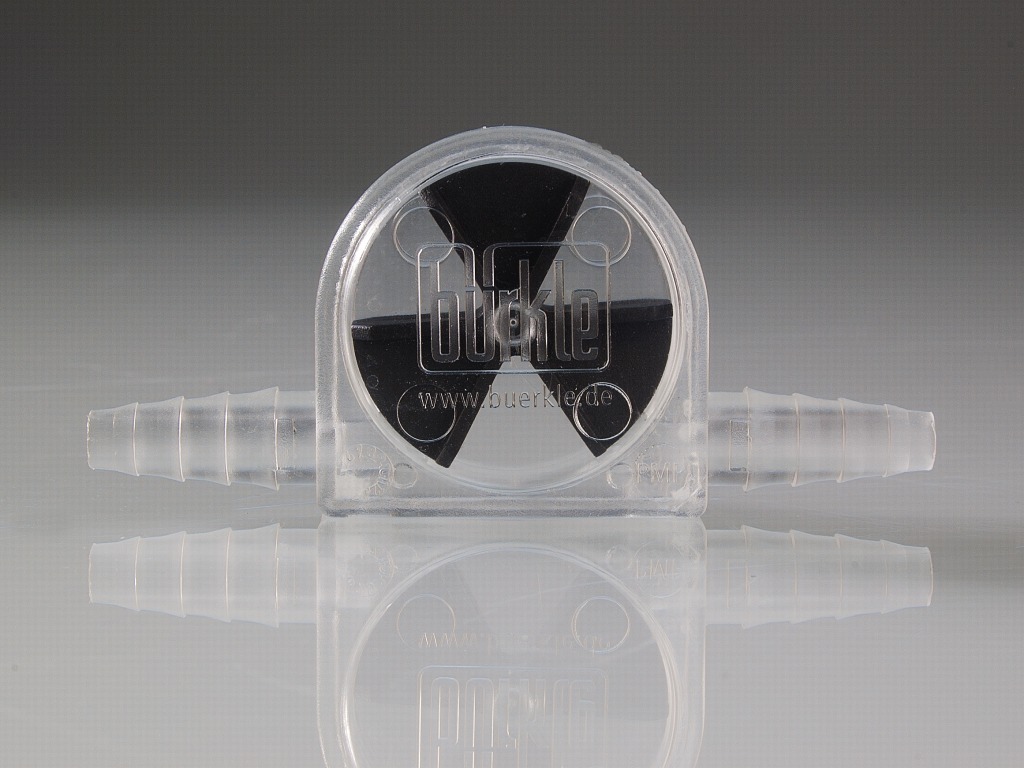

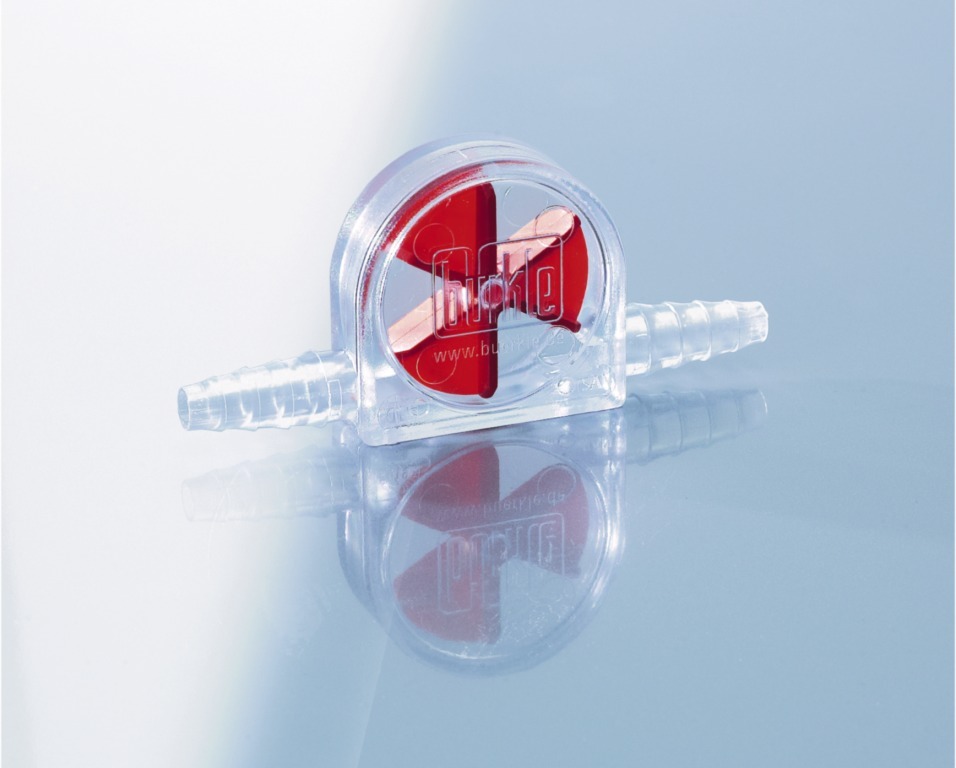

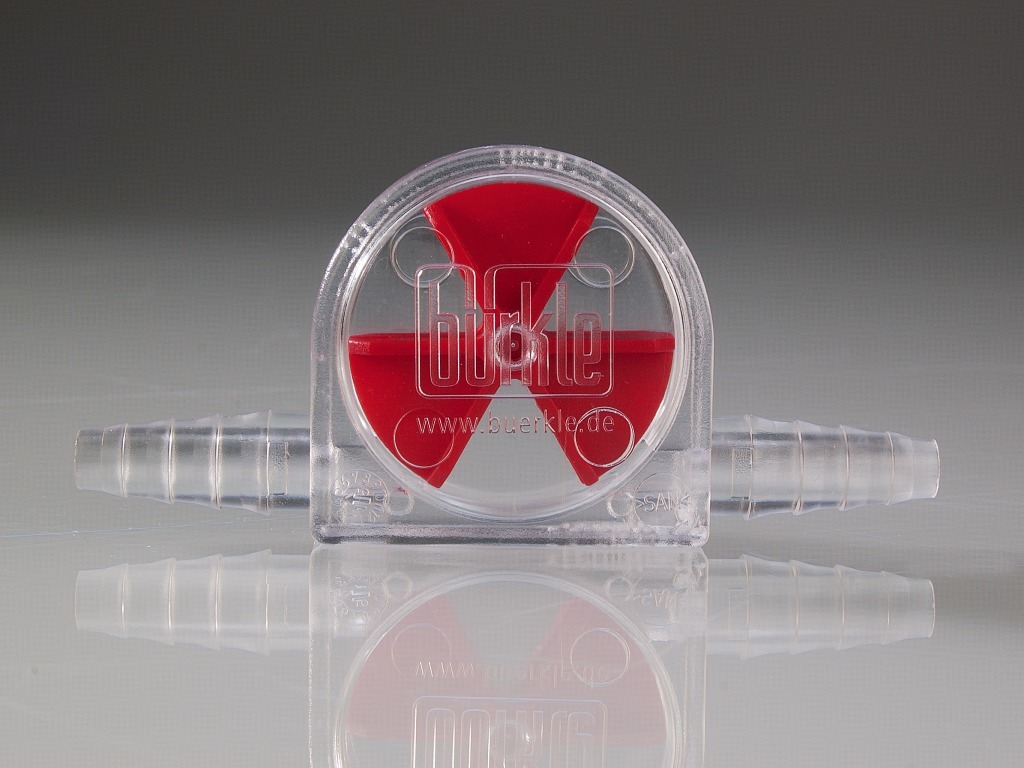

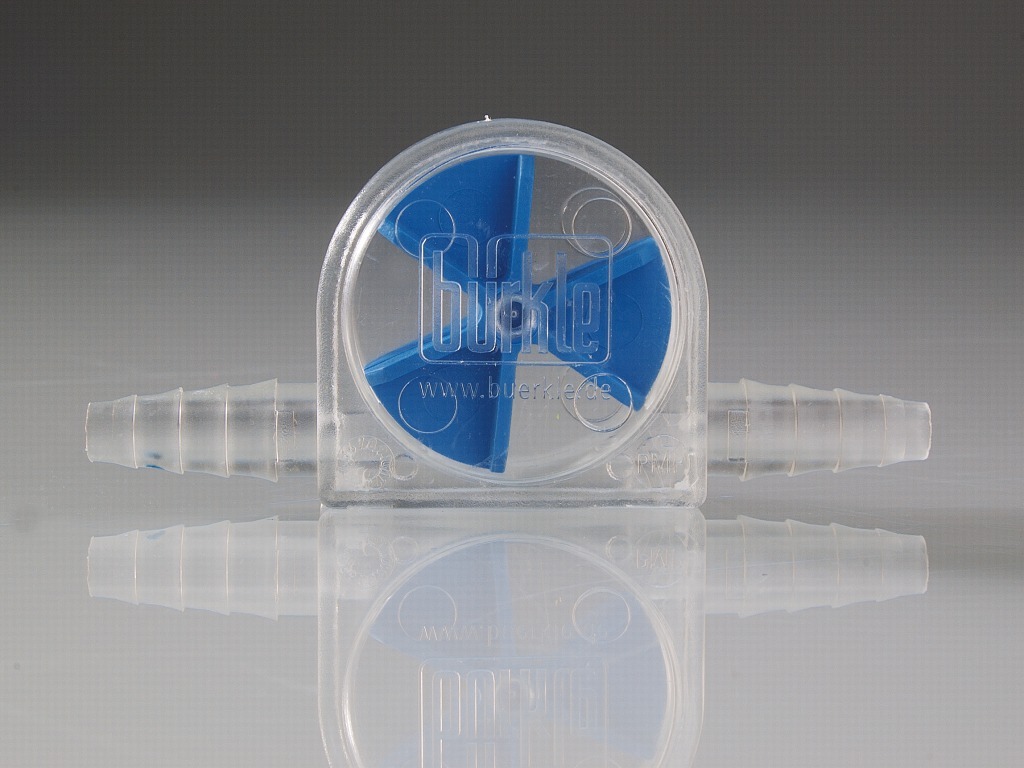

Flow indicators give precise visual indication of the flow velocity of liquids or gases being transported through hose connections. The flow indicator with impeller functions in both directions and in any position. The impeller (PP) starts to rotate at a flow rate about 150 ml/min (5.07 oz./min) (liquids).
Material
