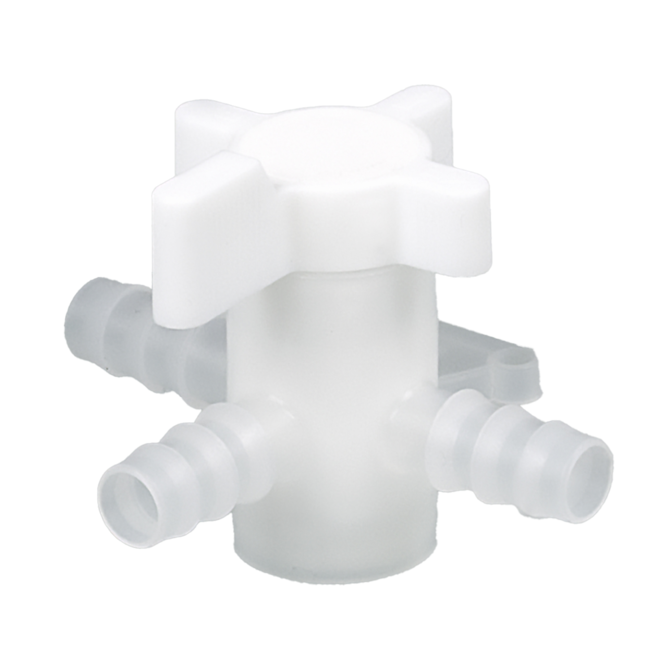

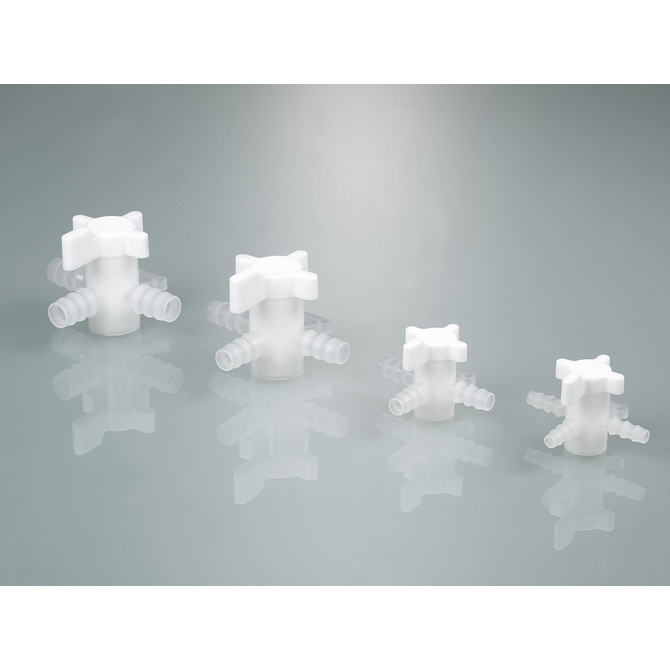

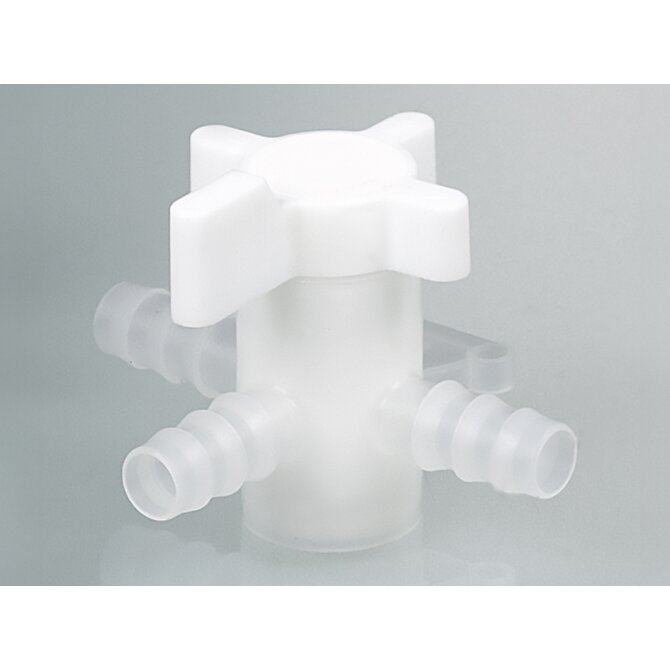

Three-way valves PVDF
- Resistant to compression max. 1 bar (14.50 psi)
- With mounting plate for easy installation
- PVDF: excellent chemical resistance, transparent, suitable for food
- Operating temperature: PVDF +0 °C (+32 °F) up to +40 °C (+104 °F)
Detailed information
Three-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.
Typical application area of the product
Three-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.
- Three-way valves PVDF
Specifications
General material
PVDF
Polyvinylidene fluoride
Coloring
- Color:
- colorless
Operating temperature
- Temperature max.:
- 40 °C (104 units.°F)
Grommet suitable for
- For hose Ø inside from:
- 9 mm (0.3543 in)
- For hose Ø inside up to:
- 11 mm (0.4331 in)
Connector dimensions
- Total length:
- 70 mm (2.7559 in)
- Width:
- 67 mm (2.6378 in)
- Total height:
- 53 mm (2.0866 in)
- Spout Ø outside from:
- 9.6 mm (0.378 in)
- Spout Ø outside to:
- 11.8 mm (0.4646 in)
Pressure resistant
- Pressure max.:
- 1 bar (14.5038 psi)
Connector
- Shape:
- T
- Grommet:
- cylindrical/straight
- Function:
- for flow control
Similar products

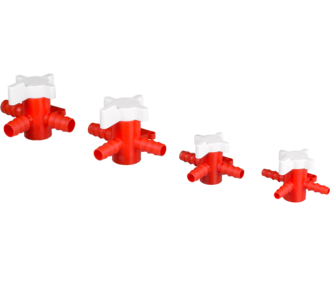

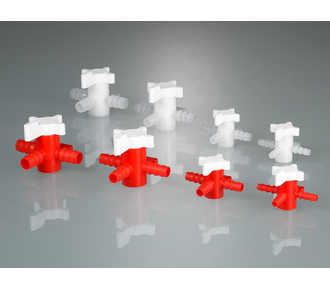

Three-way valves PP/PE
Three-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.

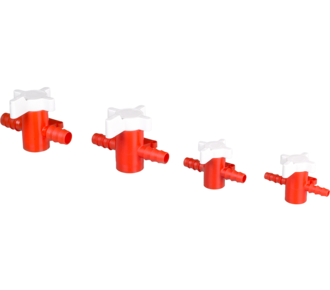

Two-way valves PP/PE
Two-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.

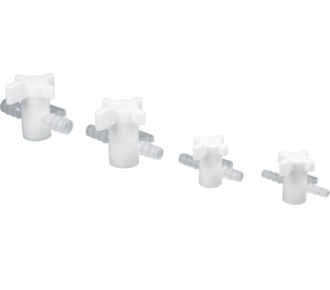

Two-way valves PVDF
