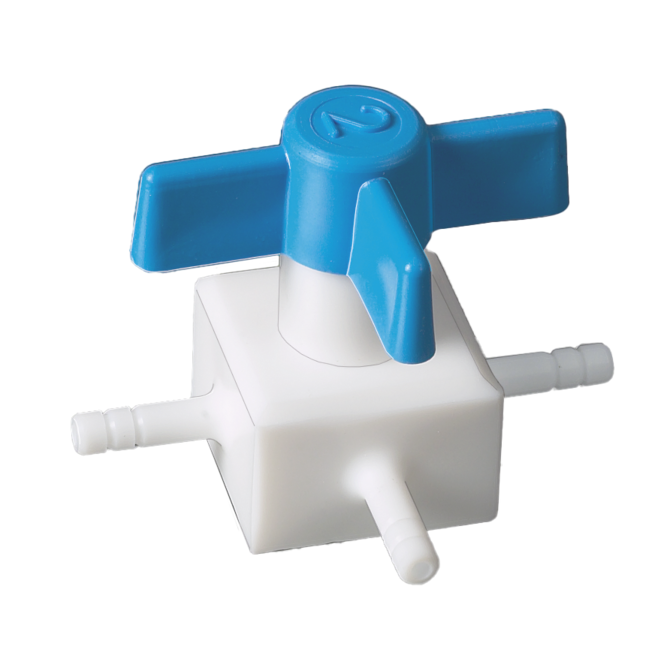

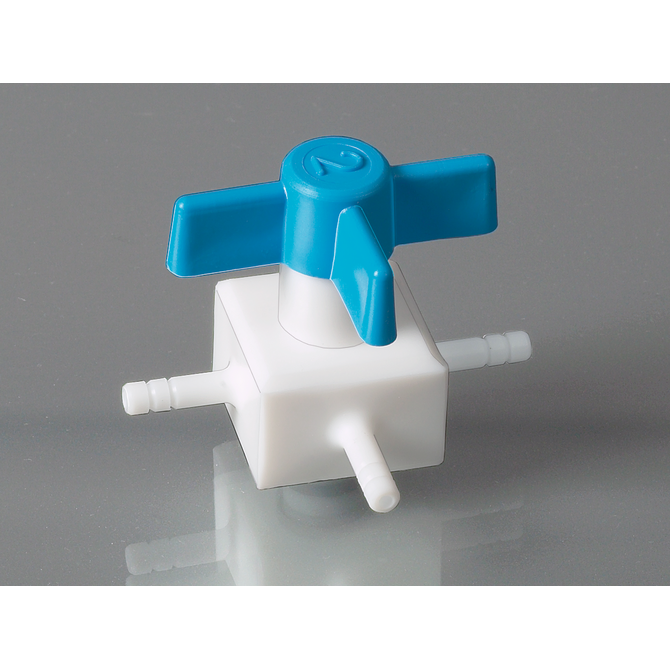

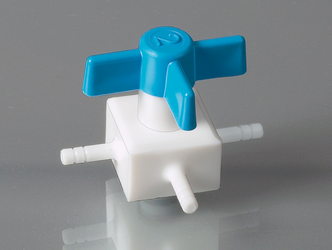

PTFE valve, three-way
3-way valve - multi-port valve for flexible flow management
- Maximum chemical resistance, resistant to aggressive media
- Ideal for high-purity processes thanks to smooth, non-adhesive surface and sterilizability
- Versatile functionality: mixing, distributing, stopping or switching
Detailed information
The three-way valve efficiently diverts fluids when they need to be directed, mixed or interrupted. It enables targeted switching between two lines, reliable stopping of flows and precise redirection or distribution in different directions.
The compact PTFE valve, with two or three ways, is the ideal solution for demanding applications in laboratories, technology and industry. Made of high-purity PTFE (polytetrafluoroethylene), it offers excellent chemical resistance, even to aggressive acids, alkalis and solvents. The PP handle ensures comfortable handling and the excellent sliding properties make the valve smooth and easy to operate. Thanks to its vacuum and pressure resistance (up to 1 bar and 5 mmHg respectively), the valve can be used for a wide range of applications - from standardized laboratory processes to high-purity applications in semiconductor production or the pharmaceutical industry. The compact design saves space during installation, while the flexible connection option ensures easy integration into existing systems.
Typical application area of the product
The two- or three-way PTFE valve is used in chemical plants, dosing systems and analysis devices in which aggressive media must be safely and reliably guided. It also impresses in clean rooms, in semiconductor production or in the pharmaceutical industry thanks to its high material purity and low particle content. It is perfect for precise dosing, media switching or vacuum-based processes.
- Valve made of PTFE, three-way
Specifications
General material
PTFE
Polytetrafluoroethylene
Further materials
PP
Polypropylene
Coloring
- Color:
- blau/weiss
Nominal Ø
- Nominal diameter:
- 2 mm (0.0787 in)
Grommet suitable for
- For hose Ø inside from:
- 4 mm (0.1575 in)
- For hose Ø inside up to:
- 4.5 mm (0.1772 in)
Connector dimensions
- Total length:
- 59 mm (2.3228 in)
- Width:
- 43 mm (1.6929 in)
- Total height:
- 51 mm (2.0079 in)
- Spout Ø outside:
- 4.5 mm (0.1772 in)
Pressure resistant
- Pressure max.:
- 1 bar (14.5038 psi)
Operating temperature
- Temperature max.:
- 260 °C (500 °F)
- Temperature min.:
- -200 °C (-328 °F)
Connector
- Shape:
- T
- Grommet:
- cylindrical/straight
Similar products

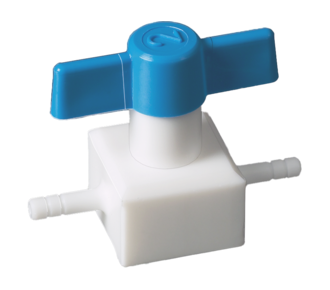

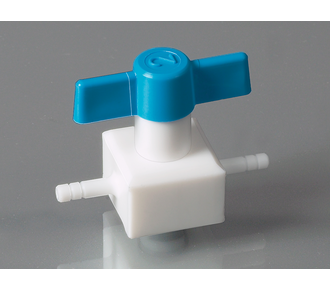

PTFE valve, two-way
Three-way valves PVDF
Three-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.
Three-way valves PP/PE
Three-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.
Two-way valves PVDF
Two-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.
Two-way valves PP/PE
Two-way valves are used for transfer of liquids in order to release the flow, to block it or to change its direction.

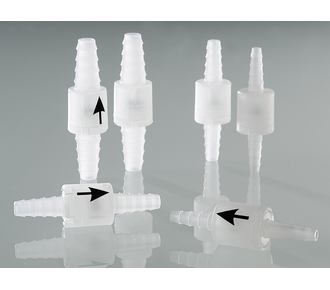

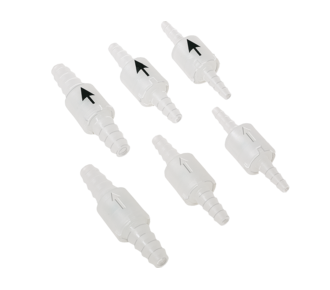

Non-return valves with conical inlet/outlet
