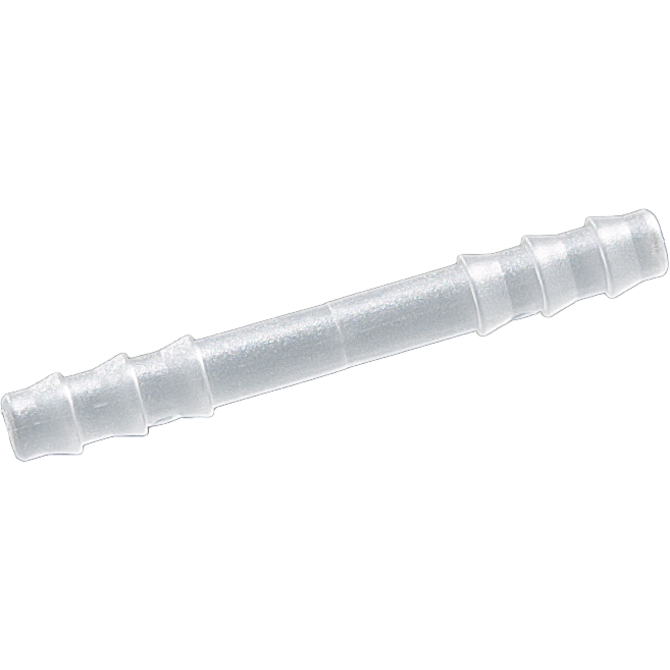

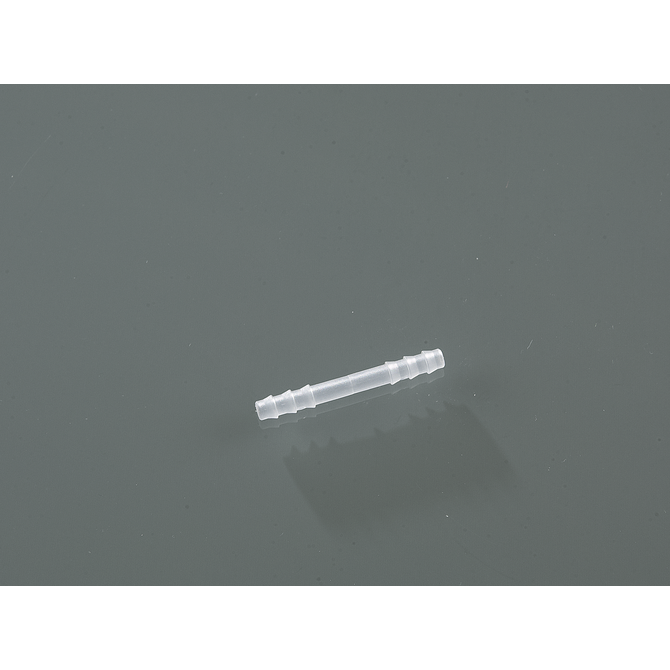

ose tubing connectors, straight, cylindrical nozzles, PVDF
- Sterilizable
- PVDF, Temperature resistant up to +160 °C (+320 °F) max., highly resistant to chemicals
Detailed information
Cylindrical straight hose connectors for various hose sizes.
Typical application area of the product
Bürkle offers a large portfolio of different hose connectors that are used to extend, connect, branch, join and repair hoses, etc.
The ranges of application are diverse and thus the requirements for shape, size and material properties are broadly based.
- ose tubing connectors, straight, cylindrical nozzles, PVDF
Specifications
General material
PVDF
Polyvinylidene fluoride
Coloring
- Color:
- colorless
Grommet suitable for
- For hose Ø inside from:
- 3 mm (0.1181 in)
- For hose Ø inside up to:
- 5 mm (0.1969 in)
Connector dimensions
- Total length:
- 40 mm (1.5748 in)
- Width:
- 4.9 mm (0.1929 in)
- Total height:
- 4.9 mm (0.1929 in)
- Spout Ø outside from:
- 4 mm (0.1575 in)
- Spout Ø outside to:
- 4.9 mm (0.1929 in)
Operating temperature
- Temperature max.:
- 160 °C (320 units.°F)
Connector
- Shape:
- I
- Grommet:
- cylindrical/straight
- Function:
- to connect
Similar products

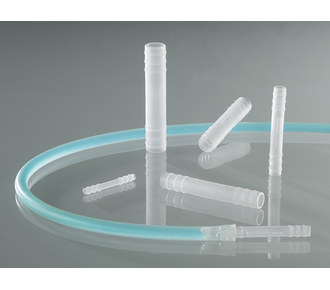

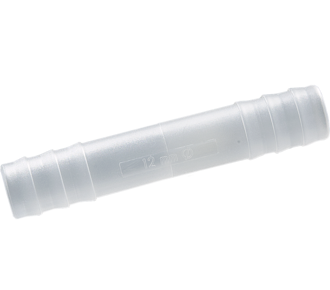

ose tubing connectors, straight, cylindrical nozzles, PP
Cylindrical straight hose connectors for various hose sizes.

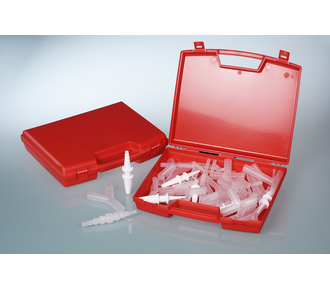

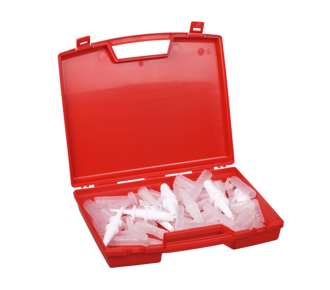

Magic Box
In this magic box, you can invariably find the appropriate hose connector you are looking for.
Magic box includes 68 connectors:
Two of each in sizes 4 (0.16), 6 (0.24), 8 (0.31), 10 (0.39), 12 (0.47) and 14 mm (0.55 in.)
- Straight hose connector Item No. 8701-
- T hose connector Item No. 8705-
- Y hose connector Item No. 8706-
- X hose connector Item No. 8708-
- Angle hose connector Item No. 8707-
Two of each for hoses from 4-17 mm (0.16-0.67 in.)
- Universal hose connector Item No. 8700-0417
Two of each in sizes 4-8 (0.16-0.31), 4-12 (0.16-0.47), and 8-12 mm (0.31-0.47 in.)
- Reducing hose connector Item No. 8703-

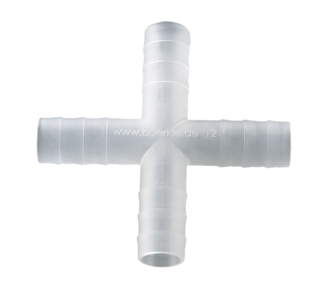

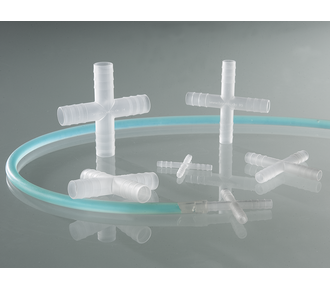

Four-way-connectors PVDF
Cylindrical four-way hose connector to connect hoses.

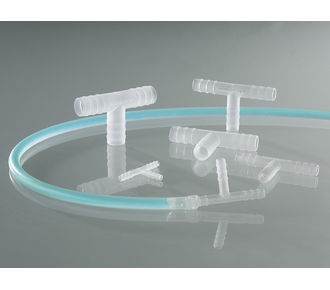

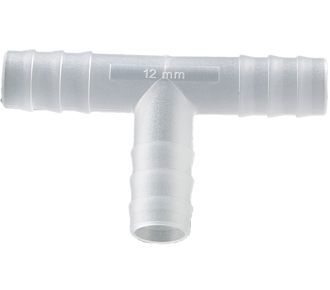

T-connectors PVDF
Cylindrical T hose connector to connect hoses.

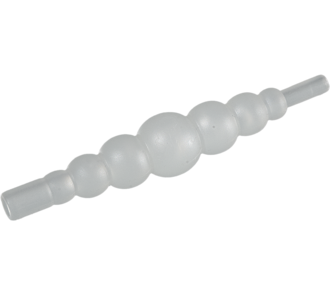

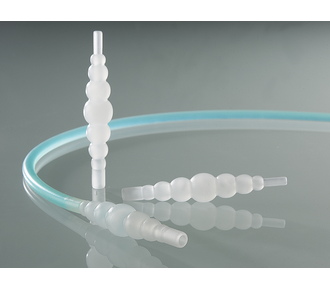

Universal hose tubing connectors with conical nozzles, PVDF
Conical, straight hose connectors for universal use.
ose tubing connectors, straight, cylindrical nozzles, PVDF
Cylindrical straight hose connectors for various hose sizes.

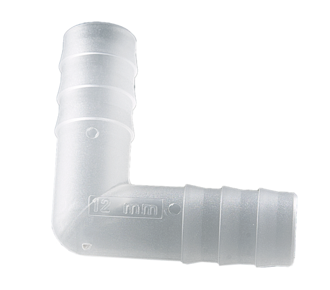

Angled connectors PVDF
Cylindrical angle hose connector to connect hoses.

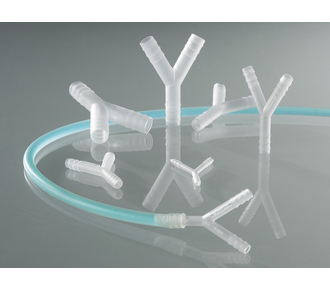

Y-connectors PVDF
