To all specifications

Packaging unit

Pack with 10 pieces

Where to buy

Detailed information

Cylindrical straight hose connectors for various hose sizes.

Typical application area of the product

Bürkle offers a large portfolio of different hose connectors that are used to extend, connect, branch, join and repair hoses, etc.
The ranges of application are diverse and thus the requirements for shape, size and material properties are broadly based.
  • ose tubing connectors, straight, cylindrical nozzles, PP

Specifications

General material

PP
Polypropylene

Coloring

Color:
colorless

Grommet suitable for

For hose Ø inside from:
5 mm (0.1969 in)
For hose Ø inside up to:
7 mm (0.2756 in)

Connector dimensions

Total length:
50 mm (1.9685 in)
Width:
6.8 mm (0.2677 in)
Total height:
6.8 mm (0.2677 in)
Spout Ø outside from:
6 mm (0.2362 in)
Spout Ø outside to:
6.8 mm (0.2677 in)

Operating temperature

Temperature max.:
135 °C (275 units.°F)
Temperature min.:
5 °C (41 units.°F)

Connector

Shape:
I
Grommet:
cylindrical/straight
Function:
to connect
To the list of chemical resistance

Similar products

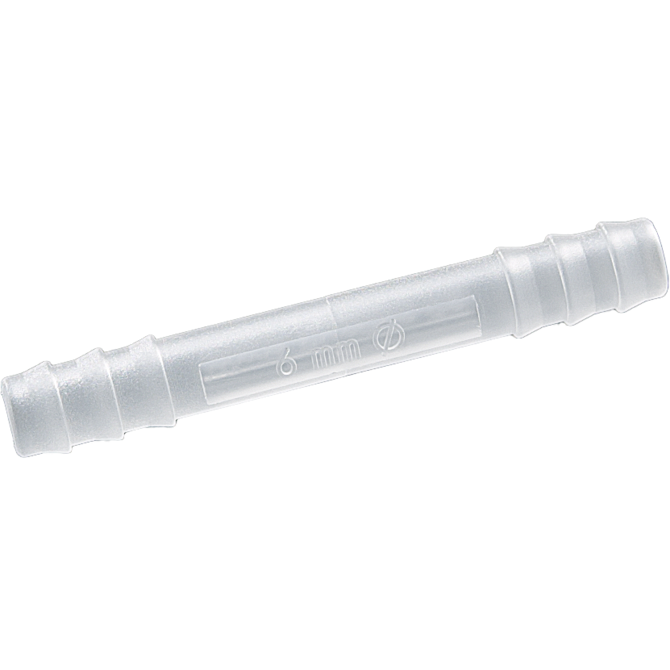

ose tubing connectors, straight, cylindrical nozzles, PVDF ose tubing connectors, straight, cylindrical nozzles, PVDF

ose tubing connectors, straight, cylindrical nozzles, PVDF

Cylindrical straight hose connectors for various hose sizes.
Magic Box Magic Box

Magic Box

In this magic box, you can invariably find the appropriate hose connector you are looking for.

Magic box includes 68 connectors:

Two of each in sizes 4 (0.16), 6 (0.24), 8 (0.31), 10 (0.39), 12 (0.47) and 14 mm (0.55 in.)

  • Straight hose connector Item No. 8701-
  • T hose connector Item No. 8705-
  • Y hose connector Item No. 8706-
  • X hose connector Item No. 8708-
  • Angle hose connector Item No. 8707-

Two of each for hoses from 4-17 mm (0.16-0.67 in.)

  • Universal hose connector Item No. 8700-0417

Two of each in sizes 4-8 (0.16-0.31), 4-12 (0.16-0.47), and 8-12 mm (0.31-0.47 in.)

  • Reducing hose connector Item No. 8703-
Angled connectors PP Angled connectors PP

Angled connectors PP

Cylindrical angle hose connector to connect hoses.

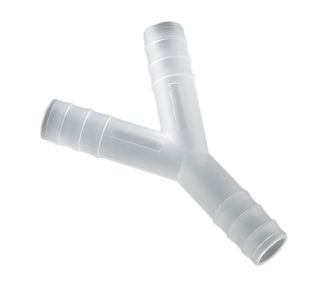

Y-connectors PP Y-connectors PP
