Gas-tight PP drum pump
Safe and clean transfer of chemical liquids thanks to integrated gas recirculation
- Safe gas recirculation reduces emissions, protects employees and prevents unpleasant odors
- Universal adapter suitable for various container openings
- Safe shut-off system with two ball valves for hermetically sealing the conveying paths
- Chemical-resistant materials are suitable for aggressive and corrosive media
- Available for different filling container connections
Detailed information
The gas-tight drum pump, made of chemical-resistant polypropylene (PP), was specially developed for safely handling volatile, odoriferous, or harmful liquids. This hand-operated, reciprocating piston pump impresses with its robust materials, high delivery rate, and maximum flexibility when used in containers of different depths.
The gas-tight drum pumps are specially designed for safely handling volatile, odoriferous, or harmful liquids. The integrated vapor recovery system uses the vapor pendulum method to prevent hazardous vapors from escaping into the environment during decanting. Instead, the vapors are directed back into the original container.
Typical application area of the product
These pumps ensure a clean, safe, and efficient workflow wherever outgassing media are transferred, whether in the laboratory, production, or warehouse. They are ideal for companies that prioritize emission protection, occupational safety, and environmental responsibility.
Material
- Drum pump gas-tight PP
Specifications
General material
PP
Polypropylene
Further materials
PE
Polyethylene
Further materials
PVC
Polyvinyl chloride
Connection
- For openings from:
- 34 mm (1.3386 in)
- For openings up to:
- 70 mm (2.7559 in)
- Connection type:
- Variable universal stopper
Throughput
- Conveying capacity:
- 220
Limit values
- Viscosity up to:
- 500
Ø
- Pipe Ø:
- 22 mm (0.8661 in)
- Immersion tube Ø:
- 32 mm (1.2598 in)
Coloring
- Color:
- gray/blue
Pump outlet
- Outlet hose length:
- 1.2 m (3.937 ft)
- Outlet type:
- Discharge hose
Delivery tube
- Immersion depth from:
- 40 cm (15.748 in)
- Immersion depth up to:
- 67 cm (26.378 in)
Further connection
- For openings from:
- 34 mm (1.3386 in)
- For openings up to:
- 70 mm (2.7559 in)
- Connection type:
- Variable universal stopper
Filling container
- For containers up to:
- approx. 220 liters
How to fill
- Drive type:
- manually operated
- Pump type:
- Reciprocating pump
- Special features Pumps:
- Return of gases via vapour recovery line
Similar products

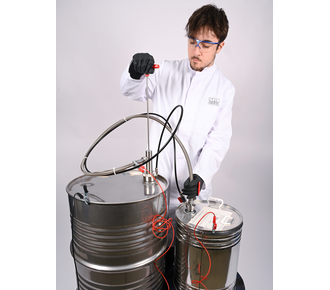

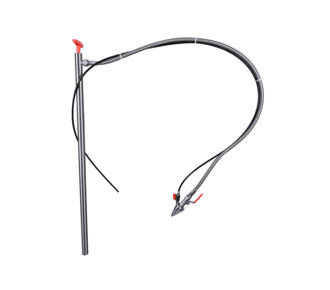

Gas-tight stainless steel drum pump with outlet hose
