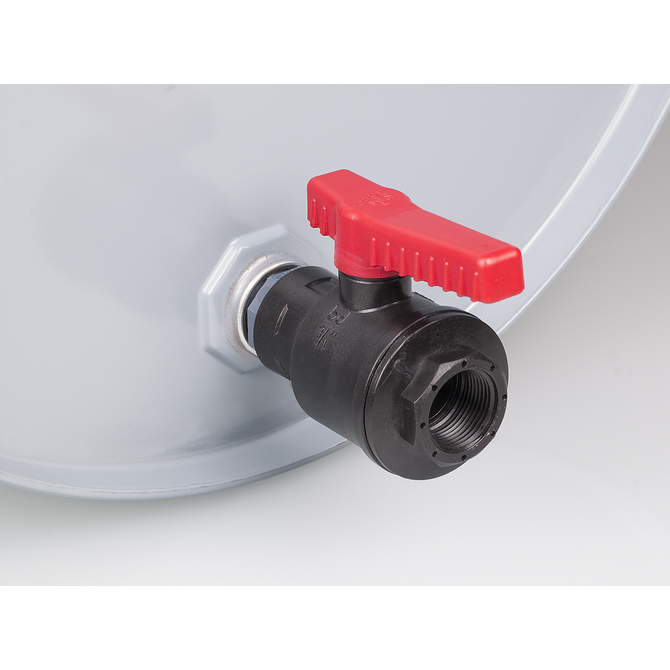

Barrel ball valves PP
- Suitable for crystallizing media
- Max. 10 bar pressure at 20 °C
- Individually adaptable thanks to a wide range of accessories
Detailed information
Barrel ball valves made of PP for barrels with threaded connections.

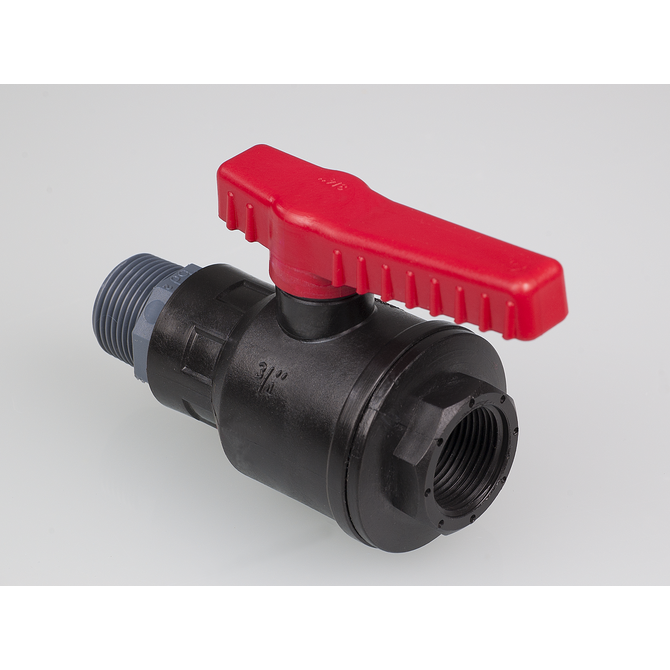

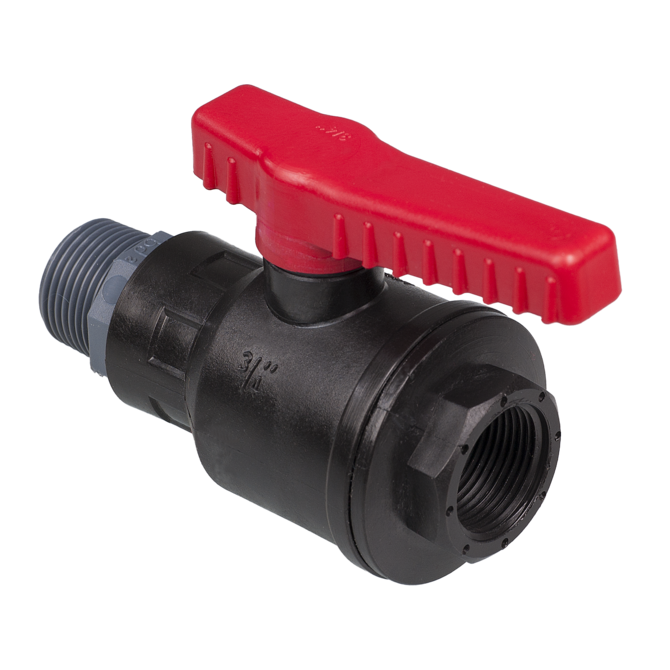

- Barrel ball valve PP
Specifications
General material
PP
Polypropylene
Further materials
FKM, FPM
Fluorine rubber
Further materials
PTFE
Polytetrafluoroethylene
Connection
- Connection type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- External thread
Coloring
- Color:
- black/red
Spigot outlet
- Outlet type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- Internal thread
Operating pressure (at +20 °C)
- Pressure max.:
- 10 bar (145.0377 psi)
Operating temperature
- Temperature max.:
- 80 °C (176 units.°F)
Nominal Ø
- Nominal diameter:
- 20 mm (0.7874 in)
Dimensions
- Length:
- 107 mm (4.2126 in)
- Width:
- 42 mm (1.6535 in)
- Height:
- 88 mm (3.4646 in)
Type of spigot
- Design of the stopcock:
- Chick cock
- Flow rate:
- low flow rate
- Special features:
- Extensive accessories
